ZX0

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless

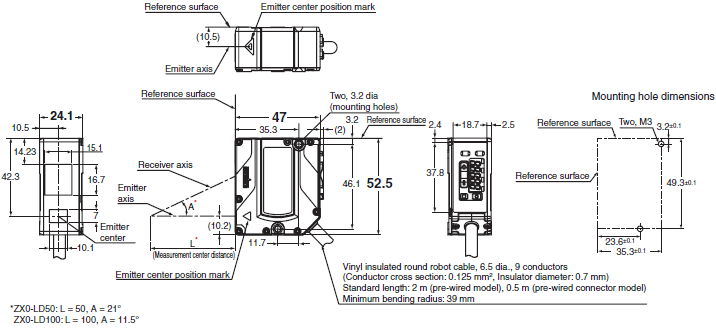

Pre-wired Models
ZX0-LD50A[]1(L)
ZX0-LD100A[]1(L)
Pre-wired Connector Models
ZX0-LD50A[]6
ZX0-LD100A[]6

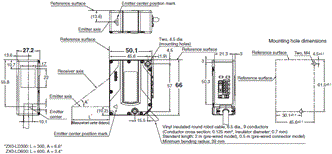

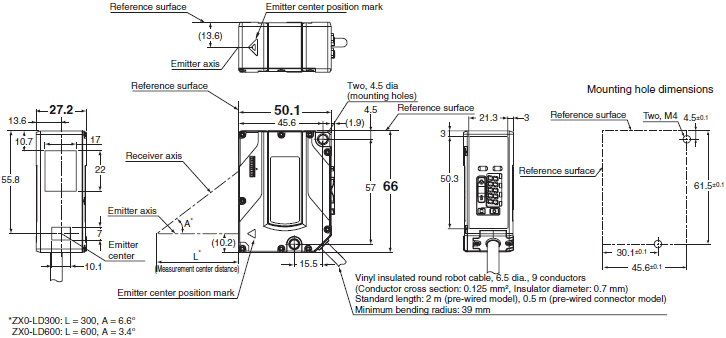

Pre-wired Models
ZX0-LD300A[]1(L)
ZX0-LD600A[]1(L)
Pre-wired Connector Models
ZX0-LD300A[]6
ZX0-LD600A[]6

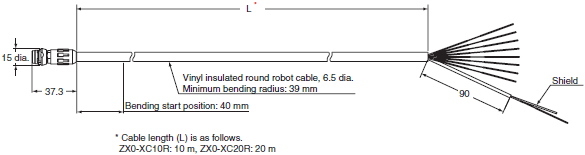

Extension Cables for Pre-wired Connector Models
ZX0-XC10R (10 m)
ZX0-XC20R (20 m)

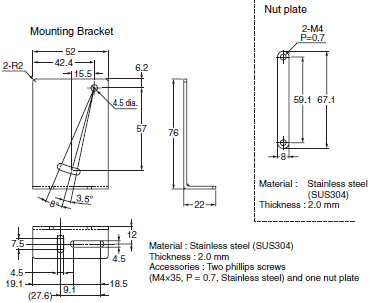

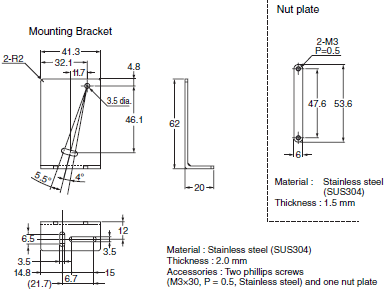

Mounting Bracket for ZX0-LD50[]/ZX0-LD100[]
E39-L180

Mounting Bracket for ZX0-LD300[]/ZX0-LD600[]
E39-L181

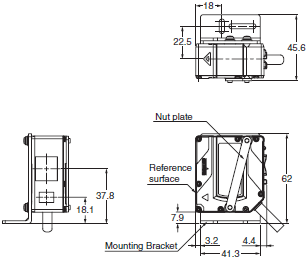

Installation Method (ZX0-LD50[]/ZX0-LD100[])
Using E39-L180 Mounting Bracket

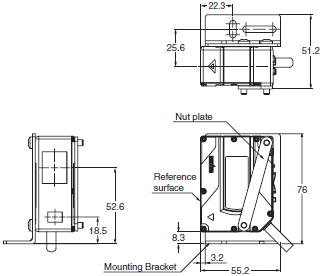

Installation Method (ZX0-LD300[]/ZX0-LD600[])
Using E39-L181 Mounting Bracket
