PYF-[][]-PU / PTF-[][]-PU / P2RF-[][]-PU

PYF-[][]-PU / PTF-[][]-PU / P2RF-[][]-PU

Sockets with Push-In Plus technology

Our Value Design Products Increase the Value of Your Control Panels. Sockets with Push-In Plus technology to Save Work Added to Series for MY, LY and G2R-S Relays.

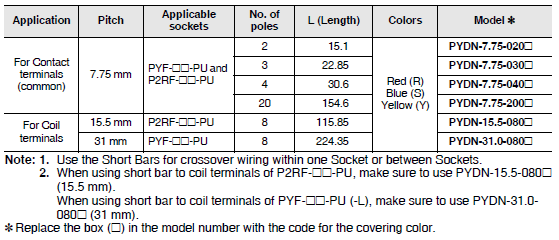

Item list of PYF-[][]-PU / PTF-[][]-PU / P2RF-[][]-PU

last update: May 22, 2023

(Unit: mm)

Sockets

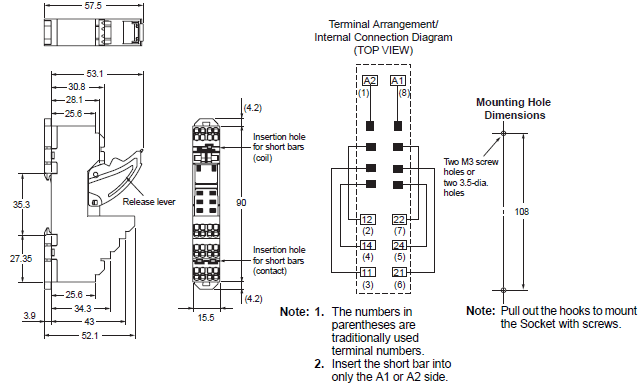

PYF-08-PU(-L)

PYF-[][]-PU / PTF-[][]-PU / P2RF-[][]-PU Dimensions 2

* The PYF-08-PU-L Sockets do not have release levers.

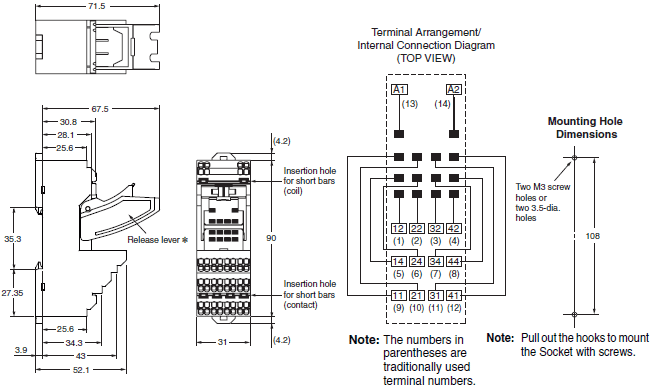

PYF-14-PU(-L)

PYF-[][]-PU / PTF-[][]-PU / P2RF-[][]-PU Dimensions 3

* The PYF-14-PU-L Sockets do not have release levers.

Mounting Heights

PYF-08-PU

PYF-[][]-PU / PTF-[][]-PU / P2RF-[][]-PU Dimensions 5

PYF-14-PU

PYF-[][]-PU / PTF-[][]-PU / P2RF-[][]-PU Dimensions 6

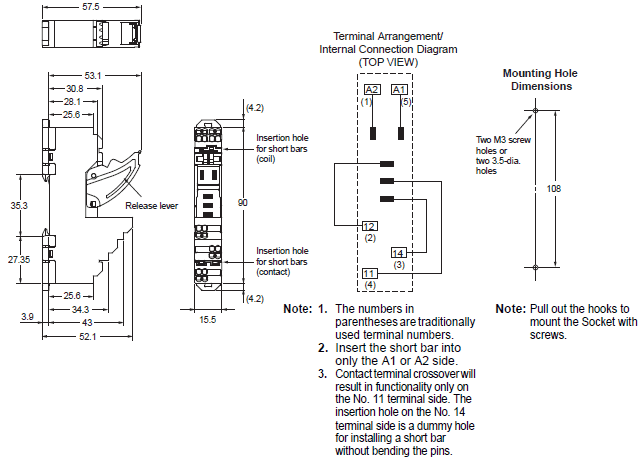

PTF-08-PU (-L)

PYF-[][]-PU / PTF-[][]-PU / P2RF-[][]-PU Dimensions 7

Note: When you apply a minimum of 10 A of current to an LY1 when it is used in combination with the PTF-08-PU(-L), connect each of the following terminal pairs: (1) to (2), (3) to (4), and (5) to (6).
* The PTF-08-PU-L Sockets do not have release levers.
