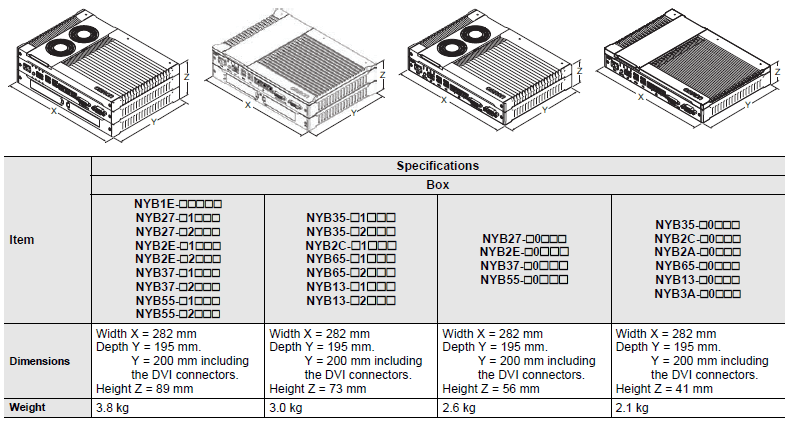

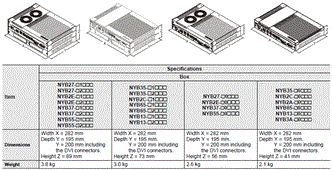

(Unit: mm)
Industrial PC Platform NY-series Industrial Box PC
You can download software for the NY Series Industrial PC Platform.
about this Product Family
last update: September 1, 2021
(Unit: mm)
NYB1E-[][][][][]
NYB27-[]1[][][]
NYB27-[]2[][][]
NYB35-[]1[][][]
NYB35-[]2[][][]
NYB2C-[]1[][][]
NYB27-[]0[][][]
NYB35-[]0[][][]
NYB2C-[]0[][][]
NYB2A-[]0[][][]

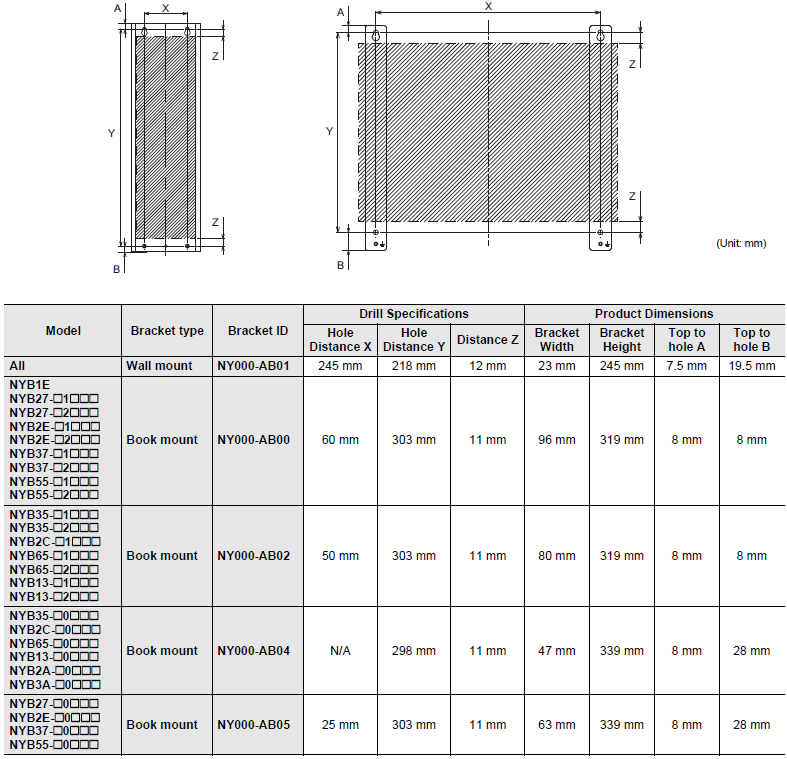

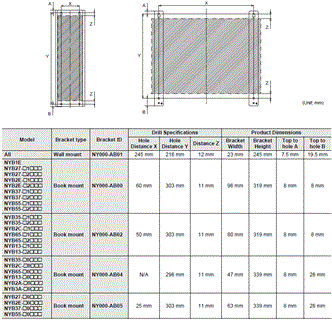

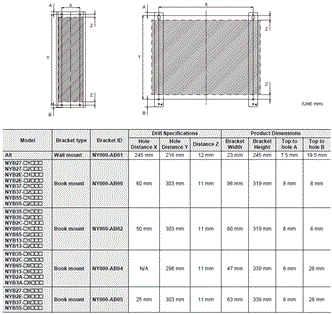

The metal mounting brackets mount your Industrial Box PC and they are the connection for the functional ground.
Use metal screws with a diameter of 4 mm or 5 mm to mount the brackets.
Mounting screw locations for book mount and wall mount orientation:
