last update: February 20, 2023

Performance Specifications

Item NYB1E-
[]1[][][]
NYB1E-
[]2[][][]		 NYB27-
[]1[][][]
NYB27-
[]2[][][]		 NYB35-
[]1[][][]
NYB35-
[]2[][][]		 NYB2C-
[]1[][][]
Main
system		 CPU CPU type Intel® Xeon®
E3-1515M
v5		 Intel®
Core™
i7-7820EQ		 Intel®
Core™
i5-7300U		 Intel®
Celeron®
3965U
Cores/Threads 4 / 8 4 / 8 2 / 4 2 / 2
CPU base
frequency		 2.8 GHz 3.0 GHz 2.6 GHz 2.2 GHz
Maximum turbo
frequency		 3.7 GHz 3.7 GHz 3.5 GHz -
Cache 8 MB 8 MB 3 MB 2 MB
Cooling details Requires active cooling
(fan)		 Passive cooling
(fanless)
Intel CPU
category		 Industrial (100% operation minimal 10yr)
Memory Memory size *1 8, 16 or
32 GB		 8, 16 or
32 GB		 4 or 8 GB 4 or 8 GB
Memory type DDR4
(ECC is
available)		 DDR4 (non ECC)
Trusted platform module
(TPM)		 Available
Graphics controller Intel® Iris™
Pro
Graphics.
Up to two
independent
screens.		 Intel® HD Graphics. Up to two independent
screens.
Intel® Iris™
Pro
Graphics
P580		 Intel® HD
Graphics
630		 Intel® HD
Graphics
620		 Intel® HD
Graphics
610
Watchdog Yes
Operating
system		 Windows OS Windows 10
IoT
Enterprise
2016 LTSB
- 64 bit		 Windows 10
IoT
Enterprise
2019 LTSC
- 64 bit		 Windows 10
IoT Enterprise
2016 LTSB - 64 bit
Storage
devices		 Drives *1 Hard disk drive • 320 GB,
500 GB,
1 TB
Serial
ATA 3.0		 • 500 GB,
1 TB
Serial
ATA 3.0		 • 320 GB
Serial ATA 3.0
Solid
state
drive		 SLC type • 64 GB
Serial ATA 3.1		 • 64 GB
Serial ATA 3.1
MLC type • 128 GB,
500 GB
Serial
ATA 3.1		 • 128 GB,
256 GB,
500 GB
Serial
ATA 3.1		 • 128 GB
Serial ATA 3.1
3DTLC
type		 N/A 1 TB N/A N/A
Drive bays (HDD/SSD) *2 2 2 2 2
Hardware-RAID support NYB1E-
[]2[][][]
only		 NYB27-
[]2[][][]
only		 NYB35-
[]2[][][]
only		 N/A
Connectors Power connector 24 VDC
I/O connector 2 inputs (UPS signal and power OFF control) and 1 output
(Industrial Box PC power state)
USB2.0
Type-A		 Number of ports 2
Maximum
current		 500 mA
Maximum cable
length		 5 m
USB3.0
Type-A		 Number of ports 2
Maximum
current		 900 mA
Maximum cable
length		 3 m
Ethernet
connectors		 Number of ports 3
Physical layer 10BASE-T, 100BASE-TX or 1000BASE-T
DVI-I
connector		 Video interface Digital or analog Digital only
Resolution Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI
cable length		 Dependent upon connected monitor type and resolution
Optional
connector
(select one
per system)		 RS-232C Standard DSUB9 connector (Non-Isolated)
DVI-D Video interface Digital only
Resolution Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI
cable length		 Dependent upon connected monitor type and
resolution
NY Monitor
Link		 Video interface Digital only
Resolution 1,280 x 800 pixels at 60 Hz
Connector type RJ45
Cable shielding,
type and max.
length		 S/FTP, Cat.6A, 100 m
USB data
throughput		 280 Mbps max.
GigE LAN Physical layer 10BASE-T,
100BASE-TX or
1000BASE-T		 -
PCIe Card
Slot		 Configuration X4 (4 lanes)
up to Gen 3		 X2 (2 lanes)
up to Gen 3
Card height Standard height cards, 4.20 inches (106.7 mm) *3
Card length Half length cards, 6.6 inches (167.65 mm)
Battery Model CJ1W-BAT01 Non replaceable battery
Service life 5 years at 25°C 10 years at 40°C *4
Fan unit Model NY000-AF00 No fan unit
Service life 70,000 hours of
continuous operation
at 40°C with 15% to 65%
relative humidity		 -
LED PWR, ERR, HDD, RUN

Item NYB27-
[]0[][][]		 NYB35-
[]0[][][]		 NYB2C-
[]0[][][]		 NYB2A-
[]0[][][]
Main
system		 CPU CPU type Intel® Core™
i7-7820EQ		 Intel®
Core™
i5-7300U		 Intel®
Celeron®
3965U		 Intel® Atom®
x5-E3940
Cores/Threads 4 / 8 2 / 4 2 / 2 4 / 4
CPU base
frequency		 3.0 GHz 2.6 GHz 2.2 GHz 1.6 GHz
Maximum turbo
frequency		 3.7 GHz 3.5 GHz - 1.8 GHz
Cache 8 MB 3 MB 2 MB 2 MB
Cooling details Requires
active
cooling (fan)		 Passive cooling (fanless)
Intel CPU
category		 Industrial (100% operation minimal 10yr)
Memory Memory size *1 8, 16 or
32 GB		 8 or 16 GB 4 or 8 GB 2, 4 or 8 GB
Memory type DDR4 (non ECC) DDR3L
(non ECC)
Trusted platform module
(TPM)		 Available
Graphics controller Intel® HD Graphics. Up to two independent screens.
Intel® HD
Graphics
630		 Intel® HD
Graphics
620		 Intel® HD
Graphics
610		 Intel® HD
Graphics
500
Watchdog Yes
Operating
system		 Windows OS Windows 10
IoT
Enterprise
2019 LTSC -
64 bit		 Windows 10 IoT
Enterprise
2016 LTSB - 64 bit		 Windows 10
IoT
Enterprise
2019 LTSC -
64 bit
Storage
devices		 Drives *1 Hard disk drive N/A
Solid
state
drive		 SLC type N/A
MLC type • 64 GB, 128 GB, 256 GB
Serial ATA 3.1, CFast
3DTLC
type		 N/A N/A N/A N/A
Drive bays (HDD/SSD) *2 CFast slot CFast slot CFast slot CFast slot
Hardware-RAID support N/A N/A N/A N/A
Connectors Power connector 24 VDC
I/O connector 2 inputs (UPS signal and power OFF control) and 1 output
(Industrial Box PC power state)
USB2.0
Type-A		 Number of ports 2
Maximum
current		 500 mA
Maximum cable
length		 5 m
USB3.0
Type-A		 Number of ports 2
Maximum
current		 900 mA
Maximum cable
length		 3 m
Ethernet
connectors		 Number of ports 3
Physical layer 10BASE-T, 100BASE-TX or 1000BASE-T
DVI-I
connector		 Video interface Digital only
Resolution Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI
cable length		 Dependent upon connected monitor type and resolution
Optional
connector
(select one
per system)		 RS-232C N/A
DVI-D Video interface N/A
Resolution N/A
Maximum DVI
cable length		 N/A
NY Monitor
Link		 Video interface Digital only
Resolution 1,280 x 800 pixels at 60 Hz
Connector type RJ45
Cable shielding,
type and max.
length		 S/FTP, Cat.6A, 100 m
USB data
throughput		 280 Mbps max.
GigE LAN Physical layer -
PCIe Card
Slot		 Configuration N/A
Card height N/A
Card length N/A
Battery Model CJ1W-BAT01 Non replaceable battery
Service life 5 years
at 25°C		 10 years at 40°C *4
Fan unit Model NY000-AF00 No fan unit
Service life 70,000 hours
of continuous
operation
at 40°C with
15% to 65%
relative
humidity		 -
LED PWR, ERR, HDD, RUN

*1. Not all combinations are possible or standard available. Please contact your Omron representative to discuss the
      possibilities.
*2. Depending on the model one or two drives are supported.
*3. Low profile cards, 2.536 inches (64.4 mm) are not supported.
*4. Battery service life highly depend on circumtance and is in normal operation 20yr longer

Electrical Specifications

Item NYB1E-
[][][][][]		 NYB27-
[]1[][][]
NYB27-
[]2[][][]		 NYB35-
[]1[][][]
NYB35-
[]2[][][]		 NYB2C-
[]1[][][]
CPU type Intel®
Xeon®
E3-1515M
v5		 Intel®
Core™
i7-7820EQ
CPU		 Intel®
Core™
i5-7300U		 Intel®
Celeron®
3965U
Rated power supply voltage 24 VDC, non-isolated
Allowable power supply
voltage range		 20.4 to 28.8 VDC
Grounding method Ground to less than 100 Ω
Inrush current At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category Meets IEC 61010-2-201: Category II
EMC immunity level IEC 61131-2: Zone B
RTC accuracy At ambient temperature of 55°C: -3.5 to +0.5 min error per month
At ambient temperature of 25°C: -1.5 to +1.5 min error per month
At ambient temperature of 0°C: -3 to +1 min error per month
Power button life 100,000 operations
Battery life 5 years at 25°C
(for battery CJ1W-BAT01)		 10 years at 40°C
Fan life 8 years of continuous operation at
40°C		 - -
Power consumption * -
Maximum power consumption
including drives and expansions		 121 W 121 W 69 W 50 W
Maximum power consumption
excluding drives and expansions		 86 W 86 W 46 W 27 W
Drives -
HDD 320 GB 2 W
HDD 500 GB 2 W
HDD 1 TB 2 W
SSD SLC 32 GB 2 W
SSD SLC 64 GB 2 W
SSD MLC 128 GB 2 W
SSD MLC 500 GB 3 W -
SSD 3DTLC 1 TB - 3 W -
CFast MLC 64 GB -
CFast MLC 128 GB -
CFast MLC 256 GB -
Expansions -
USB 14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
PCIe 15 W max. 15 W max. 5 W max. 5 W max.

Item NYB27-
[]0[][][]		 NYB35-
[]0[][][]		 NYB2C
[]0[][][]		 NYB2A-
[]0[][][]
CPU type Intel®
Core™
i7-7820EQ		 Intel®
Core™
i5-7300U		 Intel®
Celeron®
3965U		 Intel®
Atom®
x5-E3940
Rated power supply voltage 24 VDC, non-isolated
Allowable power supply voltage
range		 20.4 to 28.8 VDC
Grounding method Ground to less than 100 Ω
Inrush current At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category Meets IEC 61010-2-201: Category II
EMC immunity level IEC 61131-2: Zone B
RTC accuracy At ambient temperature of 55°C: -3.5 to +0.5 min error per month
At ambient temperature of 25°C: -1.5 to +1.5 min error per month
At ambient temperature of 0°C: -3 to +1 min error per month
Power button life 100,000 operations
Battery life 5 years at 25°C
(for battery
CJ1W-BAT01)		 10 years at 40°C
Fan life 8 years of
continuous
operation at 40°C		 - - -
Power consumption * -
Maximum power consumption
including drives and expansions		 101 W 61 W 42 W 41 W
Maximum power consumption
excluding drives and expansions		 86 W 46 W 27 W 26 W
Drives -
HDD 320 GB -
HDD 500 GB -
HDD 1 TB -
SSD SLC 32 GB -
SSD SLC 64 GB -
SSD MLC 128 GB -
SSD MLC 500 GB -
SSD 3DTLC 1 TB -
CFast MLC 64 GB 1 W
CFast MLC 128 GB 1 W
CFast MLC 256 GB 1 W
Expansions -
USB 14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
PCIe -

Note: Refer to the Industrial Box PC User’s Manual (W553) for detail.
* The total power consumption is the sum of the power consumption of all items that are installed in your Industrial Box
   PC.
   To guarantee S8BA UPS operation in combination with our IPC, the specified combination of UPS and power-supply must
   be used.

Item NYB1E / NYB27 NYB35 / NYB2C / NYB27-[]0 / NYB2A
Minimum power
requirements		 Power supply 240 W 120 W
UPS 240 W 120 W

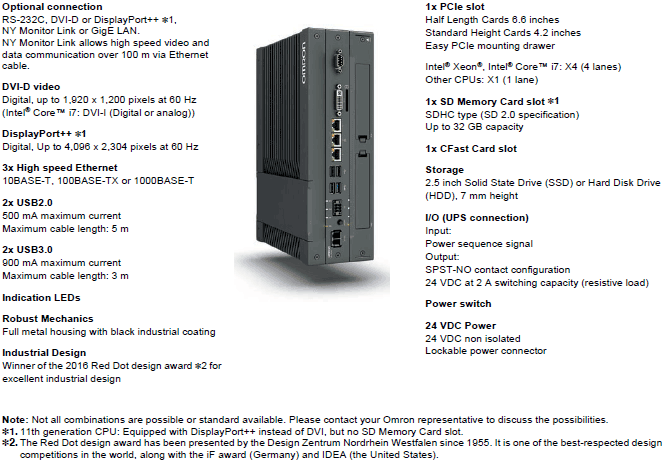

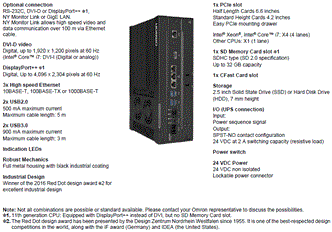

Components and functions

The intent behind our IPC platform is to empower engineers to become unstoppable in developing machines and factories that are better, faster and safer by giving them the freedom and flexibility to explore the opportunities provided by modern IT. In line with Omron’s traditional quality standards, the Industrial Box PC is designed to meet the demands of industrial users for maximum robustness and reliability.
All maintenance sensitive products (HDD/SDD, fan, battery, and PCIe Card) can be easily reached from the outside of the system. No need to open the electronics compartment, less risk on failure.

NYB Specifications 8

Environmental Specifications

Item Specifications
operation
environment		 Ambient operating temperature
*1		 0 to 55°C
Ambient storage temperature
*1		 -20 to 70°C
Ambient operating humidity *1 10% to 90% with no condensation
Ambient storage humidity *1 10% to 90% with no condensation
Operating atmosphere No corrosive gases
Altitude 2,000 m max.
Noise resistance (during
operation)		 Conforms to IEC61000-4-4, 2kV (power lines)
Vibration resistance (during
operation)		 Conforms to IEC 60068-2-6.
For a product with an SSD: 5 to 8.4 Hz with 3.5 mm single amplitude
and 8.4 to 150 Hz with 9.8 m/s2 for 10 times each in X, Y and Z
directions.
For a product with a HDD the vibration resistance depends on the
mounting orientation *2.
Shock resistance (during
operation)		 Conforms to IEC 60068-2-27.
147 m/s2, 3 times in each X, Y and Z directions
Installation method Book mount, Wall mount
Pollution degree 2 or less: Meets IEC 61010-2-201.
Applicable standards *3 EU Directives: EMC Directive 2014/30/EU (EN 61131-2) and RoHS
Directive
KC Registration, RCM, cULus, EAC

*1. The allowed ambient operating temperature and ambient humidity depend on product type, CPU type, mounting
     orientation, and storage device type.
*2. Vibration resistance depends on the Industrial Box PC's mounting orientation and storage device type:

Mounting orientation SSD or CFast Card HDD
Book 9.8 m/s2 2.5 m/s2
Wall 4.9 m/s2

*3. Contact your OMRON representative for the most recent applicable standards for each model.

Storage Device Specifications

Item Specifications
Model NY000-
AS00		 NY000-
AS01		 NY000-
AS03		 NY000-
AS04		 NY000-
AS05		 NY000-
AS07		 NY000-
AS08
Capacity 32 GB 64 GB 64 GB 128 GB 500 GB 1 TB 256 GB
Type SSD (SLC) SSD
(SLC)		 SSD
(MLC)		 SSD
(MLC)		 SSD
(3DTLC)		 SSD
(MLC)
S.M.A.R.T. support Yes
Rotation speed - - - - - - -
Interface Serial ATA 3.1
Sustained standard
read speed		 Up to
160 MB/s		 Up to
160 MB/s		 Up to
500 MB/s		 Up to
530 MB/s		 Up to
415 MB/s		 Up to
550 MB/s		 Up to
530 MB/s
Sustained standard
write speed		 Up to
145 MB/s		 Up to
150 MB/s		 Up to
370 MB/s		 Up to
190 MB/s		 Up to
200 MB/s		 Up to
340 MB/s		 Up to
210 MB/s
Operating
temperature		 0 to 70°C
Operating humidity 10% to 95% (with no condensation) 10% to 85%
(with no condensation)		 10% to 95%
(with no condensation)
Storage
temperature		 -40 to 100°C -45 to
90°C		 -55 to 95°C
Storage humidity 10% to 95% (with no condensation)
Life 1,500 TB
written		 3,000 TB
written		 1900 TB
written		 208 TB
written		 154 TB
written		 1000 TB
written		 416 TB
written

Item Specifications
Model NY000-
AH00		 NY000-
AH01		 NY000-
AH02		 NY000-
AT00		 NY000-
AT01		 NY000-
AT02
Capacity 320 GB 500 GB 1 TB 64 GB 128 GB 256 GB
Type HDD HDD HDD CFast (MLC) CFast (MLC) CFast (MLC)
S.M.A.R.T. support Yes
Rotation speed 5,400 r/min - - -
Interface Serial ATA 3.0 Serial ATA 3.1
Sustained standard
read speed		 - - - Up to
530 MB/s		 Up to
530 MB/s		 Up to
530 MB/s
Sustained standard
write speed		 - - - Up to
100 MB/s		 Up to
190 MB/s		 Up to
210 MB/s
Operating
temperature		 5 to 55°C 5 to 55°C 0 to 60°C -40 to 85°C
Operating humidity 8% to 90%
(with no condensation)		 10% to 95% (with no condensation)
Storage temperature -40 to 65°C -55 to 95°C
Storage humidity 8% to 90%
(with no condensation)		 5% to 95%
(with no
condensation)		 10% to 95% (with no condensation)
Life Approximately 5 years
or 20,000 powered-ON
hours (whichever
comes first) under the
following conditions:
• 25°C at 101.3 kPa
• Less than
333 powered-ON
hours/month *1
• Less than 20%
operation while
powered-ON *2
• Less than
1.30 x 106 seeks/
month		 Average
Annualized
Failure Rate
(AFR):
0.50%
Under the
following
conditions:
• Case
Temperat
ure 40°C
• Power on
Hours
(POH)≤
3120		 125 TB
written		 208 TB
written		 417 TB
written

Note: Orders for NY000-AS02 are no longer accepted, as of November 30, 2018.
*1. Powered-ON hours include sleep and standby modes.
*2. Operation includes seeking, writing, and reading functions.

last update: February 20, 2023

Product Category

Site Information

© Copyright OMRON Corporation 2007 - 2023. All Rights Reserved.
