K3CV
IO-Link AD Converter
Analog signals are converted to digital signals with high precision and output via IO-Link communication. Improves signal accuracy and reliability while simplifying wiring to reduce costs
Related Contents
- Signal Converters
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: August 1, 2025

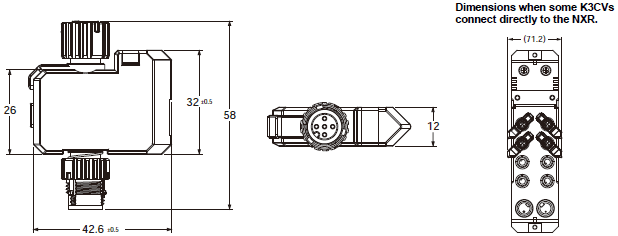

K3CV

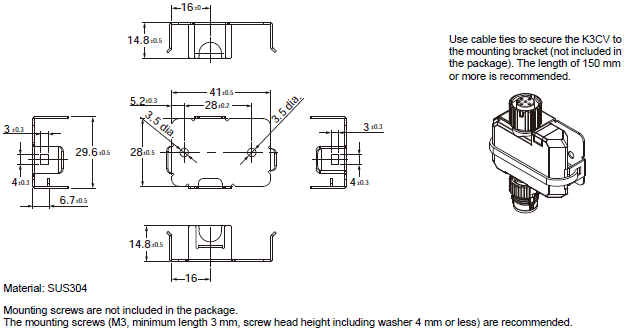

Option
Mounting Bracket
K3CV-F-1
Utilize the two screw holes to securely mount the bracket to the wall.

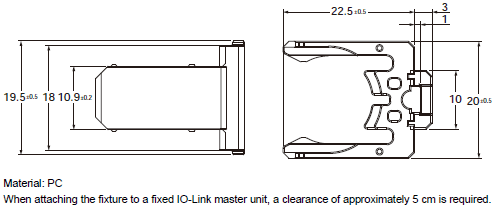

Main Unit Fixture
K3CV-F-2
Tools for M12 threaded connectors
Use them to tighten the fixture of the M12 threaded connector to the specified torque value.
Torque Wrench
XY2F-0004
