IO-Link AD Converter
Related Contents
last update: November 4, 2025

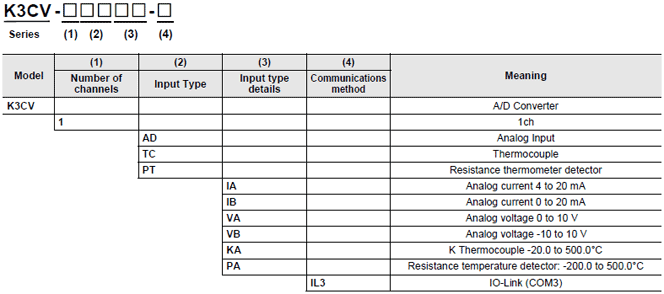

| Number of channels | Input Type | Input type details | Communications
method |
Model |
|---|---|---|---|---|
| 1 | Analog Input | Analog current 4 to 20 mA | IO-Link | K3CV-1ADIA-IL3 |
| Analog current 0 to 20 mA | K3CV-1ADIB-IL3 | |||
| Analog voltage 0 to 10 V | K3CV-1ADVA-IL3 | |||
| Analog voltage -10 to 10 V | K3CV-1ADVB-IL3 | |||
| Thermocouples | K Thermocouple -20.0 to 500.0°C | K3CV-1TCKA-IL3 | ||
| Resistance
Temperature Detector |
Resistance temperature detector:
-200.0 to 500.0°C |
K3CV-1PTPA-IL3 |
| Model |
|---|
| K3CV-F-1 |
| Model |
|---|
| K3CV-F-2 |
| Model |
|---|
| K3CV-F-3 |
| Model |
|---|
| XY2F-0004 |
When connecting the IO-Link master and K3CV with a cable, use XS5W-D421-[]81-F, connectors with cables, socket and plug on both cable ends (M12 Smartclick). For more details, refer to the XS5 datasheet. This is not necessary when the IO-Link master are connected directly to the K3CV.
Compensation Conductors for temperature controllers
The following assembly connector plugs and compensating conductor are recommended for use with the TC input type.
| Type | Model | Details |
|---|---|---|
| Assembly Connector Plugs
• 4 poles • Soldering connection |
XS5G-D423 | For 4 dia. (4 to 5 dia.) Cable connection direction: straight type |
| XS5G-D424 | For 4 dia. (4 to 5 dia.) Cable Connection direction: right-angle | |
| Compensating Conductors (K) | WCAG-N 1M | Fully vinyl-covered (waterproof)
(-20 to 70°C) |
| WCAG-N 2M | ||
| WCAG-N 4M | ||
| WCAG-N 8M | ||
| WCAG-N 10M | ||
| WCAG-N 15M | ||
| WCAG-N 20M | ||
| WCAG-N 30M | ||
| WCAG-N 50M | ||
| WCAG-40 1M | Silicone-covered (non-waterproof)
(0 to 150°C) |
|
| WCAG-40 2M | ||
| WCAG-40 4M | ||
| WCAG-40 8M | ||
| WCAG-40 10M | ||
| WCAG-40 15M | ||
| WCAG-40 20M | ||
| WCAG-40 30M | ||
| WCAG-40 50M |
For instructions on how to install the connector and compensation conductors, refer to Assembly Procedure for XS5C/XS5G (IDC models) Connector Assemblies in the XS5 datasheet.
