New

NS-B Series

Programmable Terminals

NS-B Series

Empowering on-site operations with existing NS Series assets

last update: October 1, 2026

(Unit: mm)

NB15W-TW01B-V1-S

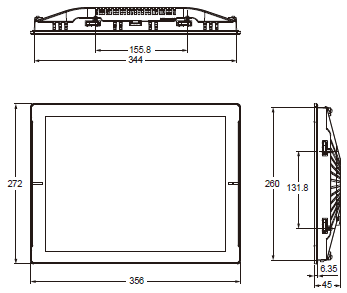

NS-B Series Dimensions 1

NB10W-TW01B-V1-S

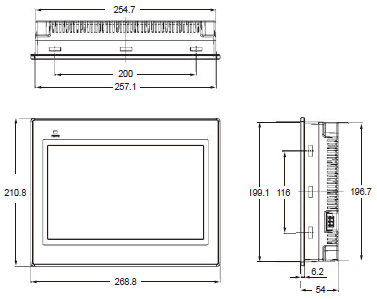

NS-B Series Dimensions 2

NB7W-TW01B-V1-S

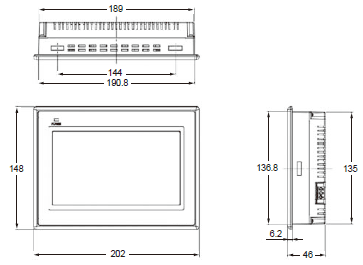

NS-B Series Dimensions 3

NB5Q-TW01B-V1-S

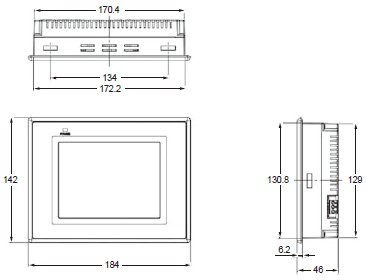

NS-B Series Dimensions 4

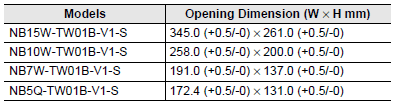

Panel opening dimension W × H (mm)

NS-B Series Dimensions 5
