FAQ02579 of Programmable Controllers FAQ

FAQ No. FAQ02579

Primary Contents

Question

My 8-second ON-delay timer program that uses a TIM instruction does not run properly. What is the problem?

Answer

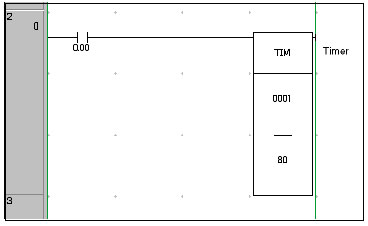

The Problem Ladder Program

Figure 1

TIM instruction in diagram 1 has a timer setting of 80. To set an 8-second timer, this value must be changed to "#0080" (8.0 seconds).

If the timer setting value is set to 80, then the contents of CIO 80 when TIM0001 is executed will be used as the set time.
