Question

What wiring should be used between a Temperature Controller and the G3PX Power Controllers?

Answer



1. Analog Control

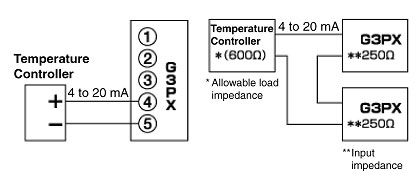

Controlling with a 4 to 20-mA-output Temperature Controller

Note: Up to 2 drivable G3PX and a current output Temperature Controller can be used.
This is restricted, however, to Temperature Controllers with an allowable load impedance of 600 Ω.

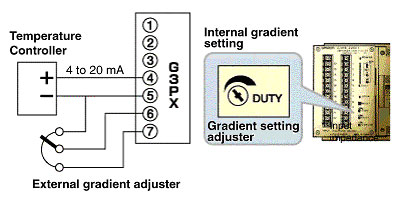

Changing the Gradient for a Temperature Controller (4 to 20-mA Output)

Note: The gradient can be changed using either the internal or external gradient setting using the external adjuster.

2. ON/OFF Control
Changing Gradient Using a Voltage-output Temperature Controller

Note: The gradient can be changed using either the internal or external gradient setting.
