S8VK-T

Switch Mode Power Supply (120/240/480/960 W Models)

S8VK-T

Renewal of 400 V, 3-phase standard type. 480 W/960 W feature PFC for lower input current and higher efficiency (93% typ.) than conventional products

Model Number Structure

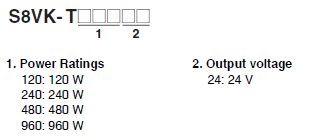

Model Number Legend

S8VK-T Lineup 2

Ordering Information

Note: For details on normal stock models, contact your nearest OMRON representative.

Power ratings Rated Input
voltage
Rated Output
Voltage
Rated Output
current
Maximum
Boost Current
Model number
120 W 2-phase and 3-phase
380 to 480 VAC
450 to 600 VDC
24 V 5 A 6 A S8VK-T12024
240 W 24 V 10 A 12 A S8VK-T24024
480 W 24 V 20 A 24 A S8VK-T48024
960 W 3-phase, 2-phase
380 to 480 VAC
24 V 40 A 48 A S8VK-T96024

Mounting Brackets

Name Model Qty used
Front-mounting bracket (for 120, 240 and 480 W models) S82Y-VK10F 1
Front-mounting bracket (for 480 and 960 W model) S82Y-VK90F 1
Side-mounting bracket (for 120 W model) S82Y-VK10S 1
Side-mounting bracket (for 240 W model) S82Y-VK20S 1

Note: Be sure to use the accessory screws.
         Mounting screw tightening torque (recommended): 4.43 to 5.31 lb-in (0.5 to 0.6 Nm)
