(Unit: mm)
Transparent Object Detection Photoelectric Sensor
last update: January 4, 2024
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

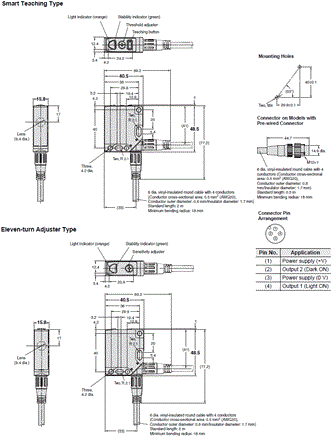

Pre-wired Models
E3S-DBN1[](T)
E3S-DBP1[](T)
Models with Pre-wired Connector
E3S-DBN3[](T)
E3S-DBP3[](T)
Materials: Reflective surface: Acrylic, Rear surface: ABS
Materials: Reflective surface: Methacrylic resin (PMMA),
Rear surface: Polybutylene terephthalate (PBT)
Materials: Reflective surface: Acrylic, Rear surface: ABS
Materials: Reflective surface: Methacrylic resin (PMMA)
Materials: Reflective surface: Methacrylic resin (PMMA)
