Global(Unit: mm)
E2ER / E2ERZ
Oil-resistant Proximity Sensors
Proximity Sensors That Withstand Cutting Oil to Reduce Failures Caused by Ingress of Cutting Oil
Related Contents
- Proximity Sensors
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: July 1, 2016
Pre-wired Models

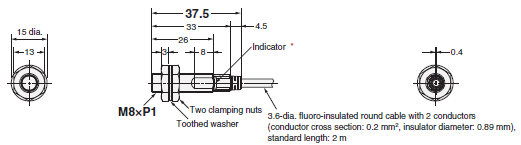

E2ER-X2D[]
* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

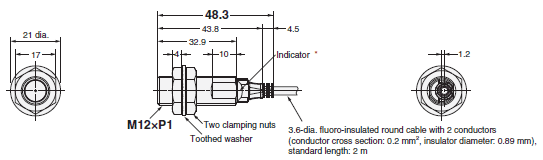

E2ER-X3D[]
E2ERZ-X2D[]
* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

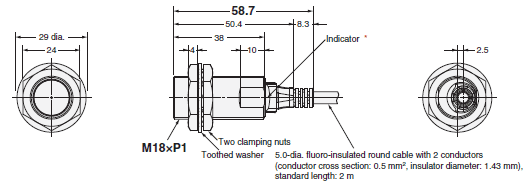

E2ER-X7D[]
E2ERZ-X4D[]
* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

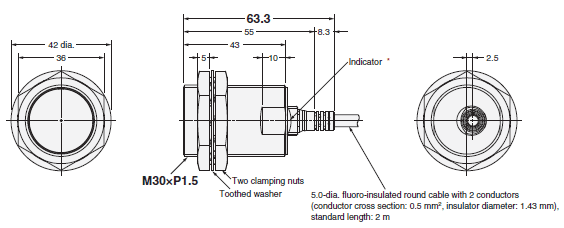

E2ER-X10D[]
E2ERZ-X8D[]
* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

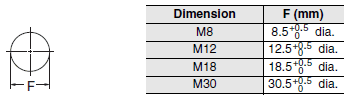

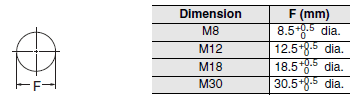

Mounting Hole Dimensions

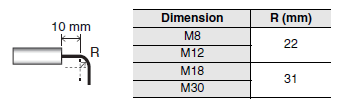

Angle R of the Bending Wire
Pre-wired Connector Models

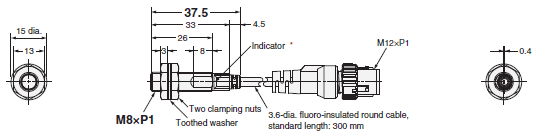

E2ER-X2D[]-M1TGJ
* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

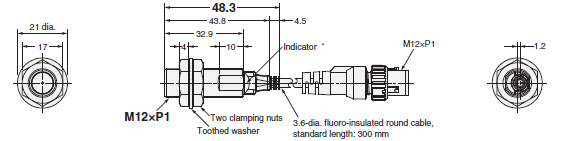

E2ER-X3D[]-M1TGJ
E2ERZ-X2D[]-M1TGJ
* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

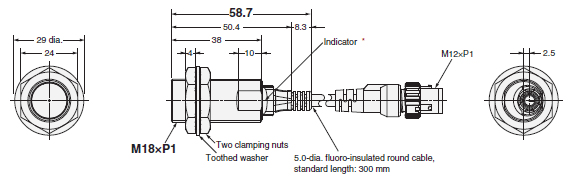

E2ER-X7D[]-M1TGJ
E2ERZ-X4D[]-M1TGJ
* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

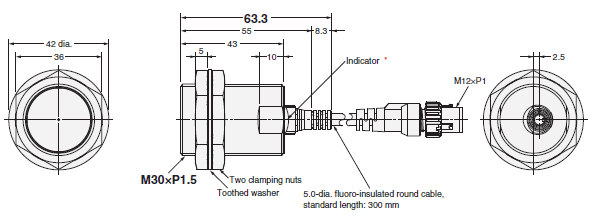

E2ER-X10D[]-M1TGJ
E2ERZ-X8D[]-M1TGJ
* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)
Mounting Hole Dimensions
Angle R of the Bending Wire
last update: July 1, 2016
