S8AS2

Smart Power Supply (240/480 W)

S8AS2

Inheriting tripping performance with the renewal, while renewing Efficiency, size, and design.

last update: October 6, 2025

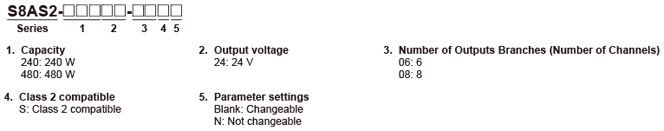

Capacity	Input voltage	Output voltage	Maximum Output current (Per output branch)	Total output current	Number of output branches	Parameter settings	Model
240 W	100 to 240 VAC	24 V	3.8 A	10 A	6	Changeable	S8AS2-24024-06S
240 W				10 A	6	Not Changeable	S8AS2-24024-06SN
480 W				20 A	8	Changeable	S8AS2-48024-08S
480 W				20 A	8	Not Changeable	S8AS2-48024-08SN

Be sure to read and fully understand the content of the S8AS2 User's Manual (Man. No. T242) before changing settings on the S8AS2.
