S8NR-S / S8R-BB

Environment-resistant IP67 Power Supply / DC Blocking Box

S8NR-S / S8R-BB

IP67 compliance and integrated functionality simplify the construction of power and safety circuits outside of control panels

S8NR-S
S8R-BB

last update: June 1, 2026

S8NR-S

Model Number Structure

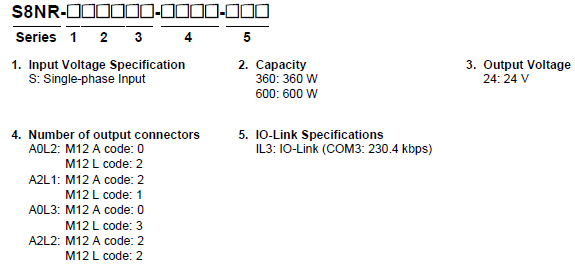

Model Number Legend

S8NR-S / S8R-BB Lineup 3

Ordering Information

Main unit

Capacity	Input Voltage	Output Voltage	Maximum Tripping Output Current per a branch output	Output branch	Commu- nication	Model
90 W	Single-phase 100 to 240 VAC	24 V	---	---	---	S8NR-S09024-A1L0
360 W			M12-A: 3.8 A M12-L: 10 A	2 connectors 4 outputs Connector 1: 10 A, 10 A Connector 2: 10 A, 10 A	IO-Link	S8NR-S36024-A0L2-IL3
360 W				3 connectors 4 outputs Connector 1: 3.8 A (Class 2) Connector 2: 3.8 A (Class 2) Connector 3: 10 A, 10 A		S8NR-S36024-A2L1-IL3
600 W	Single-phase 200 to 240 VAC			3 connectors 6 outputs Connector 1: 10 A, 10 A Connector 2: 10 A, 10 A Connector 3: 10 A, 10 A		S8NR-S60024-A0L3-IL3
600 W	Single-phase 200 to 240 VAC			4 connectors 6 outputs Connector 1: 3.8 A (Class 2) Connector 2: 3.8 A (Class 2) Connector 3: 10 A, 10 A Connector 4: 10 A, 10 A		S8NR-S60024-A2L2-IL3

Mounting Brackets (Sold separately)

Name	Model
DIN-Rail mounting brackets (for S8NR-S09024)	S82Y-NRS01DIN
DIN-Rail mounting brackets (for S8NR-S36024 and S8NR-S60024)	S82Y-NRS02DIN

Waterproof Caps (Sold separately)

Name	Model
Waterproof caps for socket connectors	XS5Z-12
Waterproof caps for plug connectors	XS5Z-13

Rain Mounting (order separately)

Support rail (Material: Aluminum)

Model
PFP-100N
PFP-50N

Support rail (Material: Aluminum)

Model
PFP-100N2

End Plate

Model
PFP-M

S8R-BB

Model Number Structure

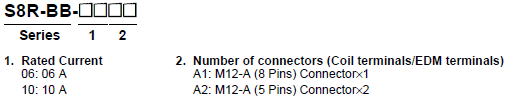

Model Number Legend

S8NR-S / S8R-BB Lineup 14

Ordering Information

Main Unit

Circuit configuration	Rated Voltage (Input/Output)	Rated Current (Input/Output)	Coil Rated Voltage	Model
Input/Output contact section: Two 1a (NO) contacts Connected in series EDM section: Two 1b (NC) contacts connected in series	24 VDC	6 A	24 VDC	S8R-BB06A1
		6 A		S8R-BB06A2
		10 A		S8R-BB10A1
		10 A		S8R-BB10A2

Mounting Brackets (Sold separately)

Name	Model
DIN-Rail Mounting Brackets for S8R-BB06	S82Y-RBB01DIN
DIN-Rail Mounting Brackets for S8R-BB10	S82Y-RBB02DIN

Waterproof Caps (Sold separately)

Name	Model
Waterproof caps for socket connectors	XS5Z-12
Waterproof caps for plug connectors	XS5Z-13

last update: June 1, 2026
