Ultracompact, Ultrathin Photoelectric Sensor with Built-in Amplifier

E3T

The Improved E3T Series with Easier, Smoother Mounting and Installation

Item list of E3T

last update: July 13, 2020

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

M2-mounting Sensors

Through-beam Side-view Sensors

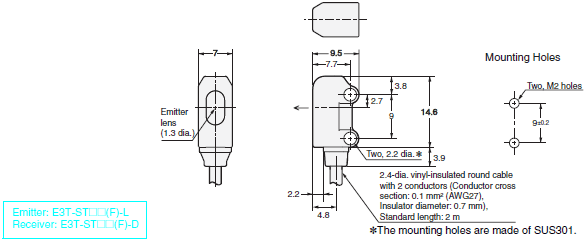

E3T-ST1[](F) (Emitter)
E3T-ST2[](F) (Emitter)
E3T-ST3[](F) (Emitter)

E3T Dimensions 5

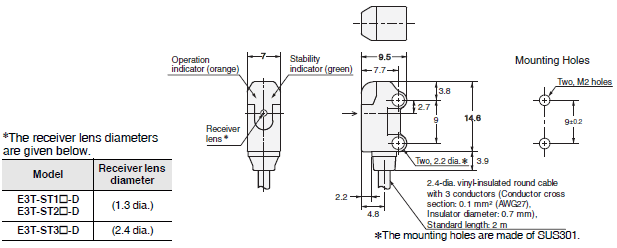

E3T-ST1[](F) (Receiver)
E3T-ST2[](F) (Receiver)
E3T-ST3[](F) (Receiver)

E3T Dimensions 6

Through-beam Flat Sensors

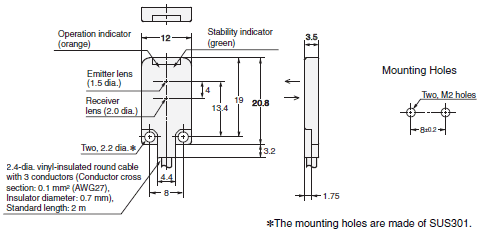

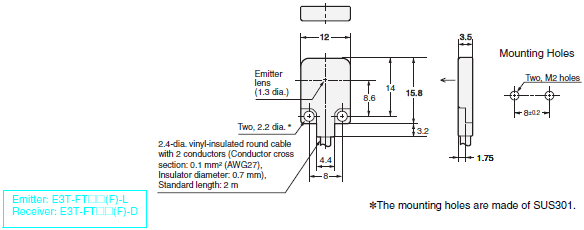

E3T-FT1[](F) (Emitter)
E3T-FT2[](F) (Emitter)

E3T Dimensions 8

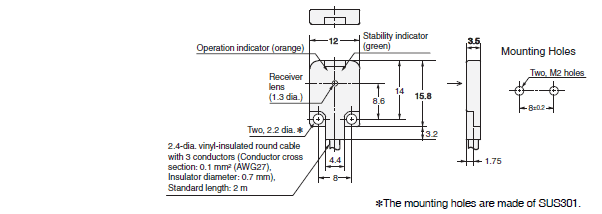

E3T-FT1[](F) (Receiver)
E3T-FT2[](F) (Receiver)

E3T Dimensions 9

Retro-reflective Side-view Sensors

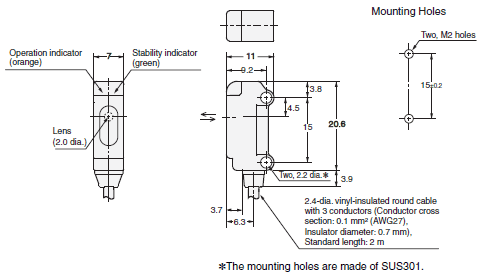

E3T-SR4[]

E3T Dimensions 11

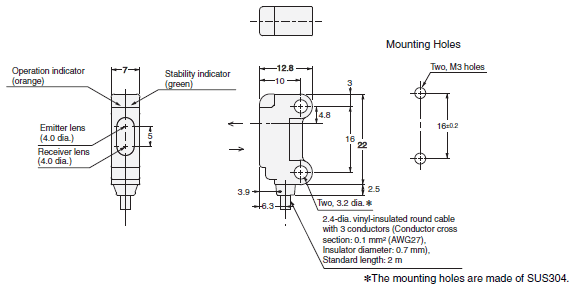

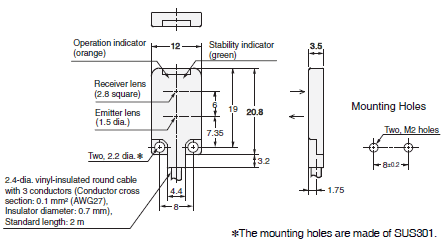

Diffuse-reflective Flat Sensors

E3T-FD1[]

E3T Dimensions 13

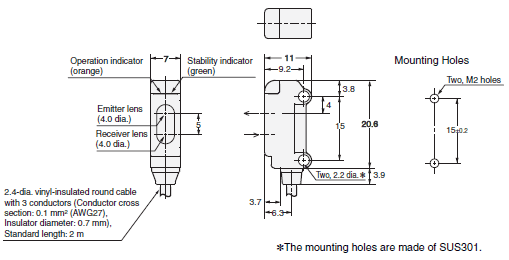

Limited-reflective Side-view Sensors

E3T-SL1[]
E3T-SL2[]

E3T Dimensions 15

BGS-reflective Flat Sensors

E3T-FL1[]
E3T-FL2[]

E3T Dimensions 17

M3-mounting Sensors

Through-beam Side-view Sensors

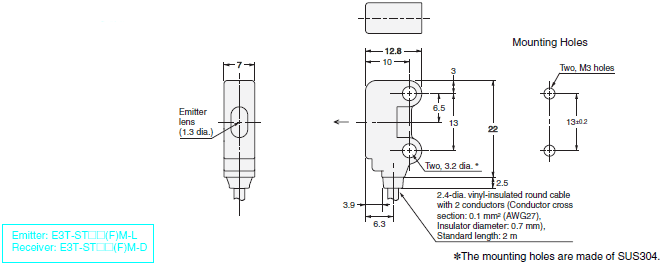

E3T-ST1[]M(F) (Emitter)
E3T-ST2[]M(F) (Emitter)

E3T Dimensions 20

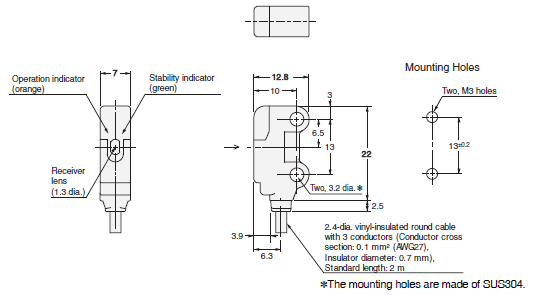

E3T-ST1[]M(F) (Receiver)
E3T-ST2[]M(F) (Receiver)

E3T Dimensions 21

Diffuse-reflective Flat Sensors

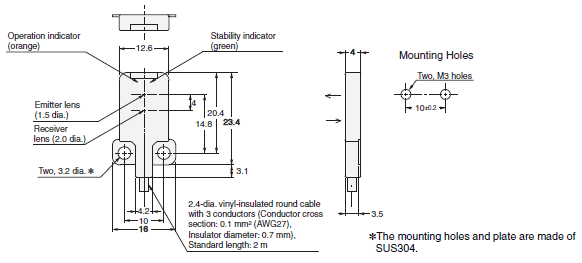

E3T-FD1[]M

E3T Dimensions 23

Limited-reflective Side-view Sensors

E3T-SL1[]M
E3T-SL2[]M

E3T Dimensions 25

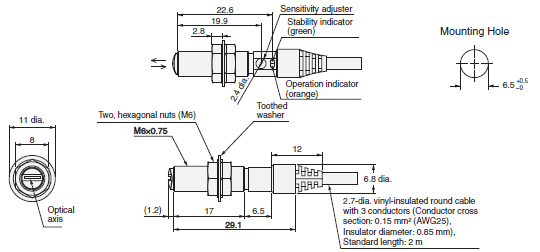

Small Cylindrical Sensors

Through-beam Top-view Sensors

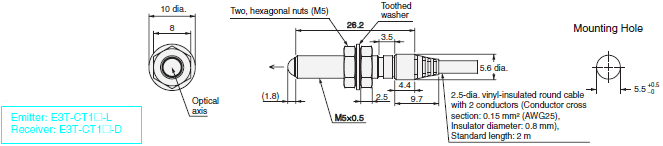

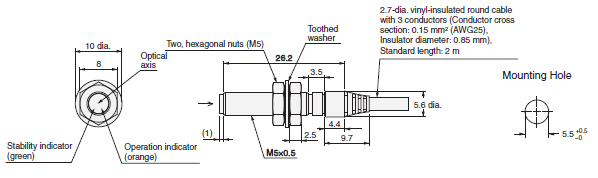

E3T-CT1[] (Emitter)

E3T Dimensions 28

E3T-CT1[] (Receiver)

E3T Dimensions 29

Through-beam Side-view Sensors

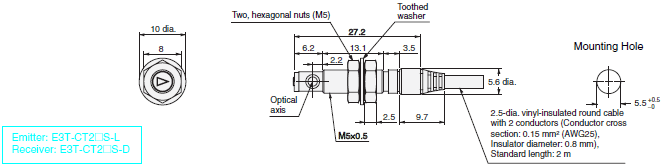

E3T-CT2[]S (Emitter)

E3T Dimensions 31

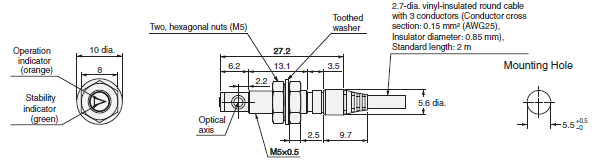

E3T-CT2[]S (Receiver)

E3T Dimensions 32

Diffuse-reflective Top-view Sensors

E3T-CD1[]

E3T Dimensions 34

Accessories

Reflector (Provided with E3T-SR4[])

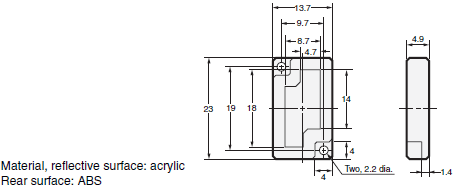

E39-R4

E3T Dimensions 37

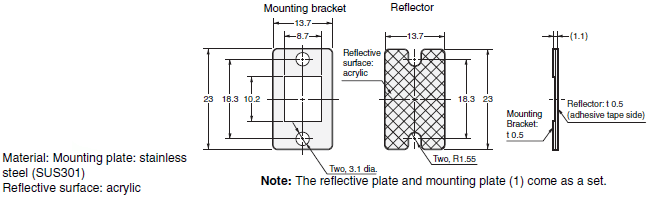

Reflector (Provided with E3T-SR4[]-S)

E39-R37-CA

E3T Dimensions 39

Accessories (Order Separately)

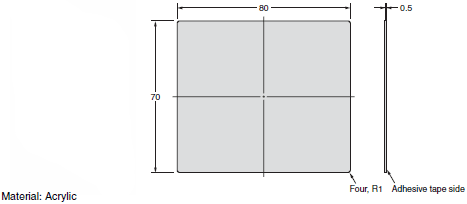

Tape Reflectors

E39-RS1-CA

E3T Dimensions 42

E39-RS2-CA

E3T Dimensions 43

E39-RS3-CA

E3T Dimensions 44

Slit for E3T-ST[][](F) Through-beam Sensors

E39-S63

E3T Dimensions 46

Slit for E3T-FT[][](F) Through-beam Sensors

E39-S64

E3T Dimensions 48

0.5-dia Slit for E3T-ST[][]M(F) Through-beam Sensors

E39-S76A

E3T Dimensions 50

1-dia Slit for E3T-ST[][]M(F) Through-beam Sensors

E39-S76B

E3T Dimensions 52

Sensitivity Adjustment Unit for E3T-ST1[]/ST3[] Through-beam Sensors

E39-E10

E3T Dimensions 54

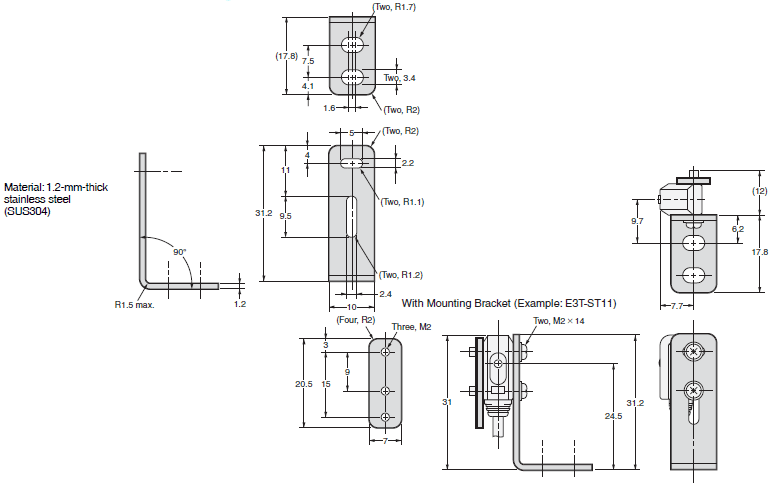

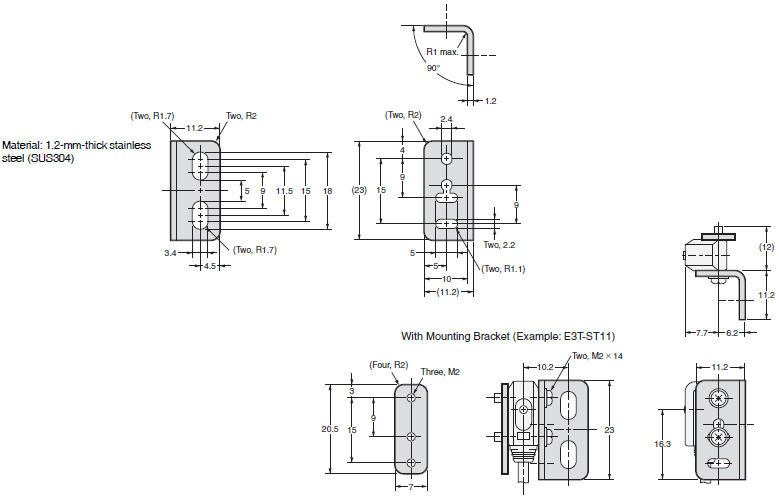

Mounting Bracket for M2-mounting Side-view Sensors

E39-L116

E3T Dimensions 56

Mounting Bracket for M2-mounting Side-view Sensors

E39-L117

E3T Dimensions 58

Mounting Bracket for M2-mounting Side-view Sensors

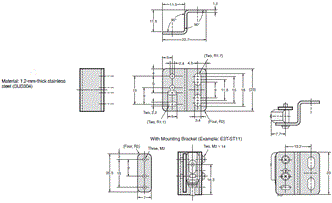

E39-L118

E3T Dimensions 60

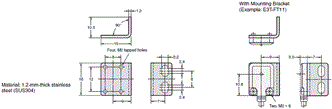

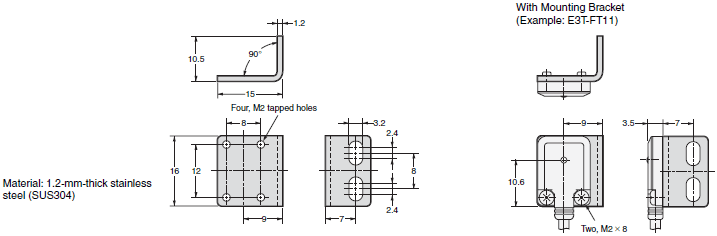

Mounting Bracket for M2-mounting Flat Sensors

E39-L119

E3T Dimensions 62

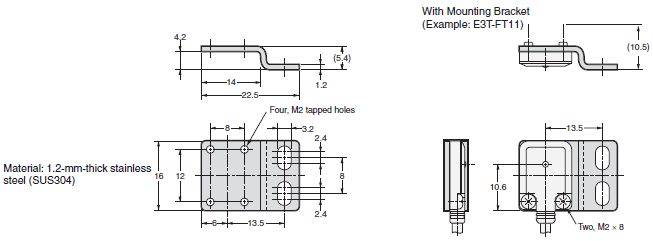

Mounting Bracket for M2-mounting Flat Sensors

E39-L120

E3T Dimensions 64

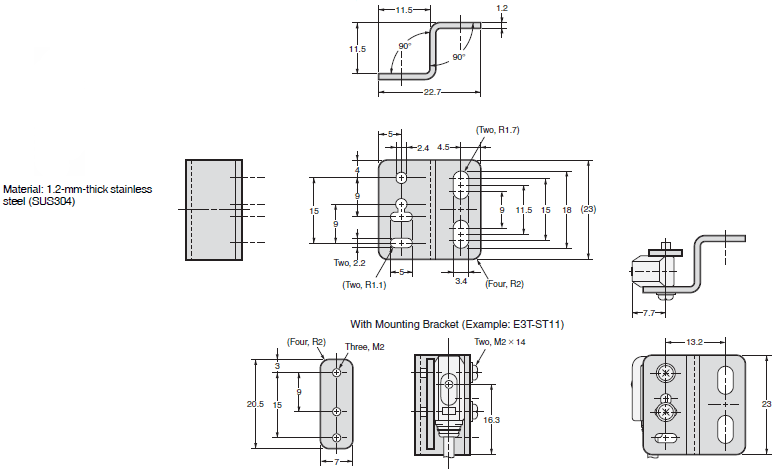

Mounting Bracket for M3-mounting Side-view Sensors

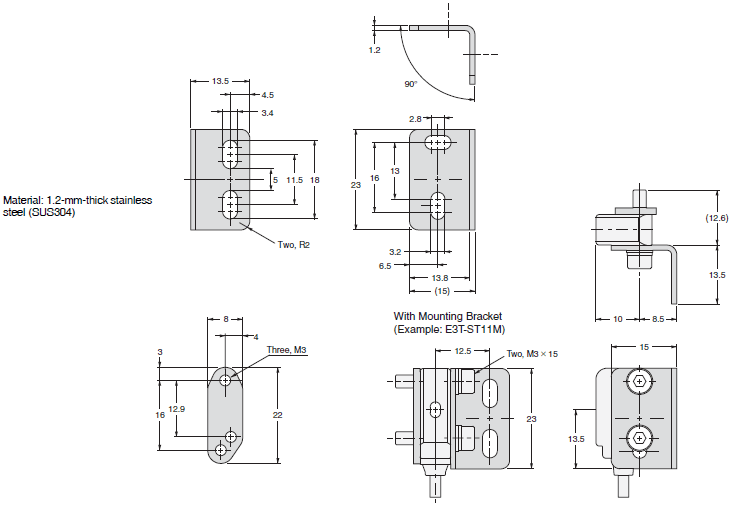

E39-L166

E3T Dimensions 66

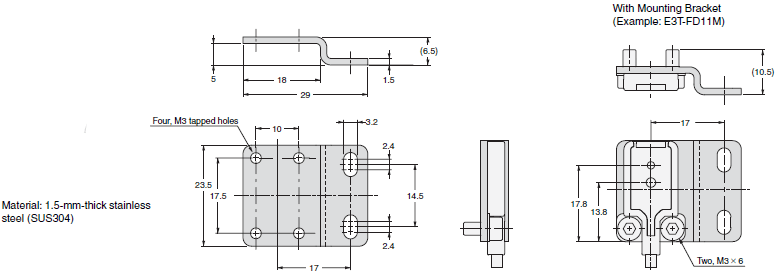

Mounting Bracket for M3-mounting Flat Sensors

E39-L167

E3T Dimensions 68

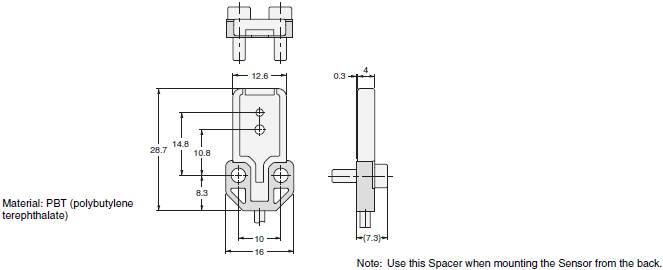

Back-mounting Spacer for M3-mounting Flat Sensors

E39-L168

E3T Dimensions 70
