Use this model number legend to identify products from their model number. Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
Round Water-resistant Connectors (M8/S8)
last update: January 14, 2025

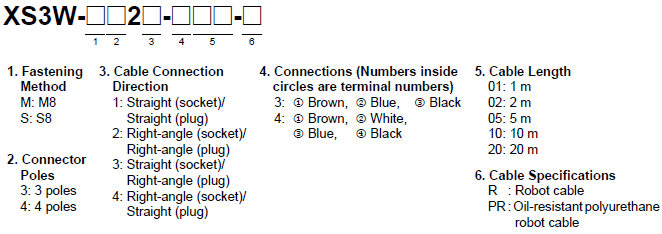

Use this model number legend to identify products from their model number. Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
Cable
specifications |
No. of
cable cores |
Cable connection
direction |
Cable length
L (m) |
Model | UL |
---|---|---|---|---|---|
Robot cable | 3 | Straight (Socket)/
Straight (Plug) |
1 | XS3W-M321-301-R | UL2238
certified (File no. E207683) |
2 | XS3W-M321-302-R | ||||
5 | XS3W-M321-305-R | ||||
10 | XS3W-M321-310-R | ||||
4 | Straight (Socket)/
Straight (Plug) |
1 | XS3W-M421-401-R | ||
2 | XS3W-M421-402-R | ||||
5 | XS3W-M421-405-R | ||||
10 | XS3W-M421-410-R | ||||
20 | XS3W-M421-420-R | ||||
Right-angle (Socket)/
Right-angle (plug) |
1 | XS3W-M422-401-R | |||
2 | XS3W-M422-402-R | ||||
5 | XS3W-M422-405-R | ||||
10 | XS3W-M422-410-R | ||||
20 | XS3W-M422-420-R | ||||
Straight (Socket)/
Right-angled (Plug) |
1 | XS3W-M423-401-R | |||
2 | XS3W-M423-402-R | ||||
5 | XS3W-M423-405-R | ||||
10 | XS3W-M423-410-R | ||||
20 | XS3W-M423-420-R | ||||
Right-angle (Socket)/
Straight (Plug) |
1 | XS3W-M424-401-R | |||
2 | XS3W-M424-402-R | ||||
5 | XS3W-M424-405-R | ||||
10 | XS3W-M424-410-R | ||||
20 | XS3W-M424-420-R | ||||
Oil-resistant
polyurethane robot cable |
4 | Straight (Socket)/
Straight (plug) |
1 | XS3W-M421-401-PR | --- |
2 | XS3W-M421-402-PR | ||||
5 | XS3W-M421-405-PR | ||||
10 | XS3W-M421-410-PR | ||||
20 | XS3W-M421-420-PR | ||||
Right-angle (Socket)/
Right-angle (Plug) |
1 | XS3W-M422-401-PR | |||
2 | XS3W-M422-402-PR | ||||
5 | XS3W-M422-405-PR | ||||
10 | XS3W-M422-410-PR | ||||
20 | XS3W-M422-420-PR | ||||
Straight (Socket)/
Right-angled (Plug) |
1 | XS3W-M423-401-PR | |||
2 | XS3W-M423-402-PR | ||||
5 | XS3W-M423-405-PR | ||||
10 | XS3W-M423-410-PR | ||||
20 | XS3W-M423-420-PR | ||||
Right-angle (socket)/
Straight (Plug) |
1 | XS3W-M424-401-PR | |||
2 | XS3W-M424-402-PR | ||||
5 | XS3W-M424-405-PR | ||||
10 | XS3W-M424-410-PR | ||||
20 | XS3W-M424-420-PR |
Cable
specifications |
No. of cable cores | Cable connection direction | Cable length
L (m) |
Model | UL |
---|---|---|---|---|---|
Robot cable | 4 | Straight (Socket)/
Straight (Plug) |
1 | XS3W-S421-401-R | --- |
2 | XS3W-S421-402-R | ||||
5 | XS3W-S421-405-R | ||||
Right-angle (Socket)/
Right-angle (Plug) |
2 | XS3W-S422-402-R | |||
5 | XS3W-S422-405-R | ||||
Straight (Socket)/
Right-angled (Plug) |
2 | XS3W-S423-402-R | |||
5 | XS3W-S423-405-R | ||||
Right-angle (Socket)/
Straight (Plug) |
2 | XS3W-S424-402-R | |||
5 | XS3W-S424-405-R |
Note: Ask your OMRON representative about other cable lengths.

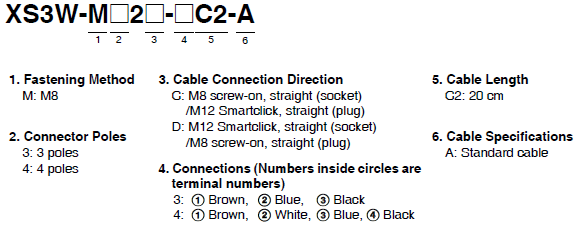

Use this model number legend to identify products from their model number. Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
Cable
specifications |
No. of cable cores | Cable connection
direction |
Cable length
L (m) |
Model | UL |
---|---|---|---|---|---|
Standard cable | 3 | M8 screw-on, straight (Socket)/
M12 Smartclick, straight (Plug) |
0.2 | XS3W-M32C-3C2-A | --- |
M12 Smartclick, straight (Socket)/
M8 screw-on, straight (Plug) |
XS3W-M32D-3C2-A | ||||
4 | M8 screw-on, straight (Socket)/
M12 Smartclick, straight (Plug) |
XS3W-M42C-4C2-A | |||
M12 Smartclick, straight (Socket)/
M8 screw-on, straight (Plug) |
XS3W-M42D-4C2-A |

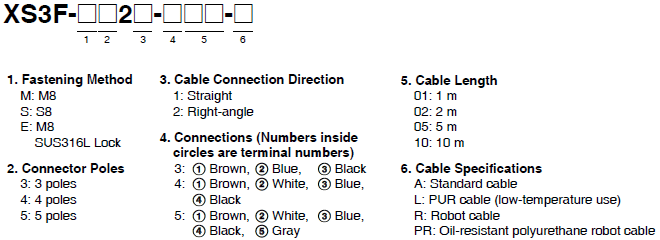

Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
Cable
specifications |
No. of cable
cores |
Cable
connection direction |
Cable
length L (m) |
Model | UL |
---|---|---|---|---|---|
Standard cable | 3 | Straight | 2 | XS3F-M321-302-A | --- |
5 | XS3F-M321-305-A | ||||
Right-angle | 2 | XS3F-M322-302-A | |||
5 | XS3F-M322-305-A | ||||
Robot cable | Straight | 1 | XS3F-M321-301-R | UL2238
certified (File no. E207683) |
|
2 | XS3F-M321-302-R | ||||
5 | XS3F-M321-305-R | ||||
10 | XS3F-M321-310-R | ||||
Right-angle | 2 | XS3F-M322-302-R | |||
5 | XS3F-M322-305-R | ||||
10 | XS3F-M322-310-R | ||||
Standard cable | 4 | Straight | 2 | XS3F-M421-402-A | --- |
5 | XS3F-M421-405-A | ||||
10 | XS3F-M421-410-A | ||||
Right-angle | 2 | XS3F-M422-402-A | |||
5 | XS3F-M422-405-A | ||||
10 | XS3F-M422-410-A | ||||
Standard SUS316L
cable lock |
Straight | 2 | XS3F-E421-402-A | ||
5 | XS3F-E421-405-A | ||||
Right-angle | 2 | XS3F-E422-402-A | |||
5 | XS3F-E422-405-A | ||||
Robot cable | Straight | 1 | XS3F-M421-401-R | UL2238
certified (File no. E207683) |
|
2 | XS3F-M421-402-R | ||||
5 | XS3F-M421-405-R | ||||
10 | XS3F-M421-410-R | ||||
Right-angle | 1 | XS3F-M422-401-R | |||
2 | XS3F-M422-402-R | ||||
5 | XS3F-M422-405-R | ||||
10 | XS3F-M422-410-R | ||||
Oil-resistant
polyurethane robot cable |
Straight | 2 | XS3F-M421-402-PR | --- | |
5 | XS3F-M421-405-PR | ||||
10 | XS3F-M421-410-PR | ||||
Right-angle | 1 | XS3F-M422-401-PR | |||
2 | XS3F-M422-402-PR | ||||
5 | XS3F-M422-405-PR | ||||
10 | XS3F-M422-410-PR | ||||
PUR cable
(low-temperature use) |
Straight | 2 | XS3F-M421-402-L | ||
5 | XS3F-M421-405-L | ||||
Right-angle | 2 | XS3F-M422-402-L | |||
5 | XS3F-M422-405-L | ||||
Standard cable | 5 | Straight | 2 | XS3F-M521-502-A | |
5 | XS3F-M521-505-A | ||||
10 | XS3F-M521-510-A | ||||
Right-angle | 2 | XS3F-M522-502-A | |||
5 | XS3F-M522-505-A | ||||
10 | XS3F-M522-510-A |
Cable
specifications |
No. of cable cores | Cable connection
direction |
Cable
length L (m) |
Model | UL |
---|---|---|---|---|---|
Robot cable | 4 | Straight | 1 | XS3F-S421-401-R | --- |
2 | XS3F-S421-402-R | ||||
5 | XS3F-S421-405-R | ||||
Right-angle | 1 | XS3F-S422-401-R | |||
2 | XS3F-S422-402-R | ||||
5 | XS3F-S422-405-R |
Note: Ask your OMRON representative about other cable lengths.

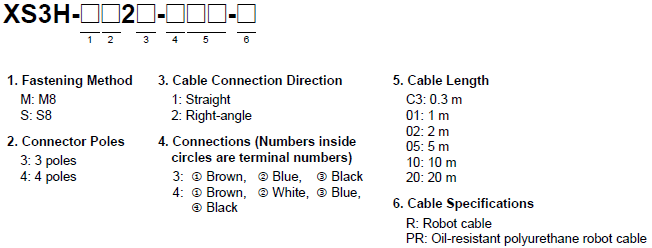

Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
Cable
specifications |
No. of
cable cores |
Cable connection
direction |
Cable length
L (m) |
Model | UL |
---|---|---|---|---|---|
Robot cable | 3 | Straight | 0.3 | XS3H-M321-3C3-R | UL2238
certified (File no. E207683) |
1 | XS3H-M321-301-R | ||||
4 | Straight | 0.3 | XS3H-M421-4C3-R | ||
1 | XS3H-M421-401-R | ||||
10 | XS3H-M421-410-R | ||||
20 | XS3H-M421-420-R | ||||
Right-angle | 0.3 | XS3H-M422-4C3-R | |||
1 | XS3H-M422-401-R | ||||
10 | XS3H-M422-410-R | ||||
20 | XS3H-M422-420-R | ||||
Oil-resistant
polyurethane robot cable |
4 | Straight | 1 | XS3H-M421-401-PR | --- |
2 | XS3H-M421-402-PR | ||||
5 | XS3H-M421-405-PR | ||||
10 | XS3H-M421-410-PR | ||||
20 | XS3H-M421-420-PR | ||||
Right-angle | 1 | XS3H-M422-401-PR | |||
2 | XS3H-M422-402-PR | ||||
5 | XS3H-M422-405-PR | ||||
10 | XS3H-M422-410-PR | ||||
20 | XS3H-M422-420-PR |
Note: Ask your OMRON representative about other cable lengths.
Cable
specifications |
No. of cable cores | Cable connection
direction |
Cable length L (m) | Model | UL |
---|---|---|---|---|---|
Robot cable | 4 | Straight | 0.3 | XS3H-S421-4C3-R | --- |
1 | XS3H-S421-401-R | ||||
Right-angle | 0.3 | XS3H-S422-4C3-R | |||
1 | XS3H-S422-401-R |
Connection
method |
Connector
Poles |
Panel mounting | Pin shape | Applicable
wires |
Model | UL |
---|---|---|---|---|---|---|
M8 screw-on | 4 | Front lock or rear lock | DIP pins | --- | XS3P-M421-1 | --- |
Solder cup pins | AWG24 max. | XS3P-M421-2 | ||||
Rear lock | Solder cup pins | AWG24 max. | XS3P-M422-2 | |||
S8 snap-in | Front lock or rear lock | DIP pins | --- | XS3P-S421-1 | ||
Solder cup pins | AWG24 max. | XS3P-S421-2 |
Mounting method | Connector Poles | Pin shape | Applicable wires | Model | UL |
---|---|---|---|---|---|
Embedded model | 4 | DIP pins | — | XS3M-K421-1 | — |
Solder cup pins | AWG26 max. | XS3M-K421-2 |
Mounting method | Connector Poles | Pin shape | Shield pin | Applicable wires | Model | UL |
---|---|---|---|---|---|---|
Front Lock | 5 | DIP pins 4.5 mm
(for either round holes or solder cups) |
No | AWG26 max. | XS3M-M524-10 | --- |
Yes | XS3M-M524-11 |
Cable | Connector | Cable length L (m) | Model | UL |
---|---|---|---|---|
With cable | Connectors on
both cable ends |
0.5 | XS3R-M426-1C51-A | --- |
1 | XS3R-M426-1011-A | |||
2 | XS3R-M426-1021-A | |||
3 | XS3R-M426-1031-A | |||
Connector on
one cable end |
2 | XS3R-M426-1020-A | ||
5 | XS3R-M426-1050-A | |||
Robot cable | Connector on
one cable end |
5 | XS3R-M426-1050-R | UL2238 certified
(File no. E207683) |
Oil-resistant
polyurethane robot cable |
Connector on
one cable end |
5 | XS3R-M426-4050-PR * | --- |
Without cable | Connectors on
both cable ends |
--- | XS3R-M426-1 | --- |
XS3R-M426-5 |
*XS3R-M426-4[][]0-PR is dedicated to wiring of 2-wire sensors.
Model | Material | Suitable connector | |
---|---|---|---|
Model | Mounting portion | ||
XS3Z-13 | PVC resin/red | XS3H/XS3W/XS3R | M8 plug |
XS3F/XS3W | S8 socket | ||
XS3H/XS3W | S8 plug | ||
XS3M | M8/S8 plug | ||
XS3Z-15 | XS3F/XS3W/XS3R | M8 socket |
