XS2

Round Water-resistant Connectors (M12 Threads)

XS2

Water- and Environment-resistive FA Connectors Save Wiring and Maintenance Effort

about this Product Family

Ratings and Specifications

Rated current 4A
Rated voltage 250 VAC/VDC
Contact resistance (Connector) 40 mΩ max. (20 mV max., 100 mA max.)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength (Connector) 1,500 VAC for 1 min (leakage current: 1 mA max.).
Degree of protection IP67 (IEC60529)
Insertion tolerance 200 times
Cable holding strength Cable diameter:
6 mm 98 N/15 s
4 to 5 mm 49 N/15 s
3 mm 29 N/15 s
Ambient operating temperature range Operating: - 25°C to 70°C
Ambient humidity range 20% to 85%

Materials and Finish

Item XS2F/H/W XS2F-LED XS2M/R/P XS2C/G
Contacts Materials Phosphor bronze Brass
Finish Nickel base, 0.4-μm gold plating
Thread
bracket
Materials Brass *
Finish Nickel plated *
Pin block Materials PBT resin (UL94V-0) PA resin (UL94V-0) PBT resin (UL94V-0)
Finish For DC: light gray; for AC: dark gray
O-ring/rubber bushing Rubber
Cover Soft PBT resin
(UL94V-0)
TPU resin (UL94HB) --- PBT resin (UL94V-0)
Cable Fire-retardant,
Robot cable
UL AWM2464 CL3,
6 mm dia.
AWG20 (0.5mm2)
Structure:
0.08 mm/110 wires
--- --- ---
Non-polar DC
Connectors with
Standard Cable
6 mm dia.
AWG20 (0.5mm2)
Structure:
0.12 mm/45 wires
--- --- ---
E2E models with
conventional
connector pin
with Fire-
retardant,
Robot cable
UL AWM2464 CL3,
6 mm dia.
AWG20 (0.5mm2)
Structure:
0.08 mm/110 wires
--- --- ---
Heat-resistant
cable up to
105°C
6 mm dia.
AWG20 (0.5mm2)
Structure:
0.12 mm/45 wires
--- --- ---
Spatter-
resistant
Cables
6.6 mm dia.
AWG20 (0.5mm2)
Structure:
0.08 mm/110 wires
--- --- ---
Standard Cable
(XS2F-LED)
--- UL AWM2464
5.0 mm dia.
(3 conductors)
5.4 mm dia.
(4 conductors)
0.34 mm2
Structure:
0.1 mm/43 wires
--- ---

* The T-joint of the XS2R is aluminum/white.

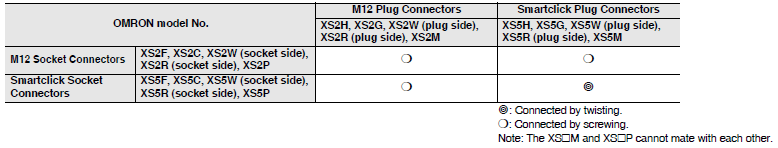

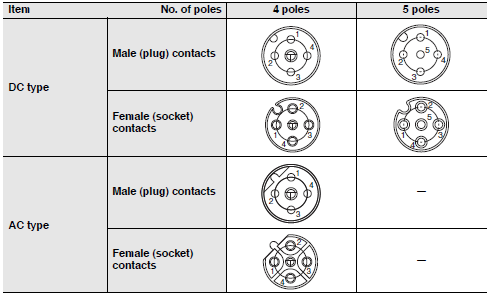

Socket Appearance

DC type AC type
Male (plug) contacts Female (socket) contacts Male (plug) contacts Female (socket) contacts
782_sp_3_1 782_sp_3_2 782_sp_3_3 782_sp_3_4

Note: The AC and DC connectors are different as shown here and therefore cannot be connected together.
