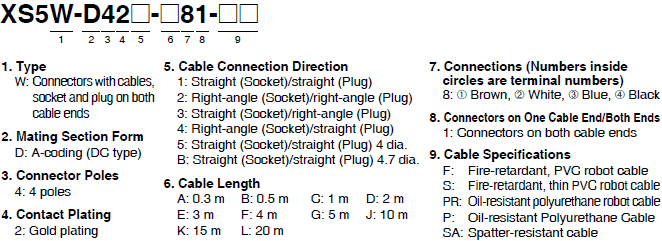

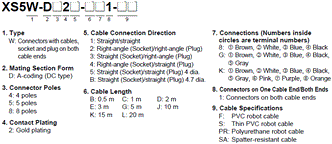

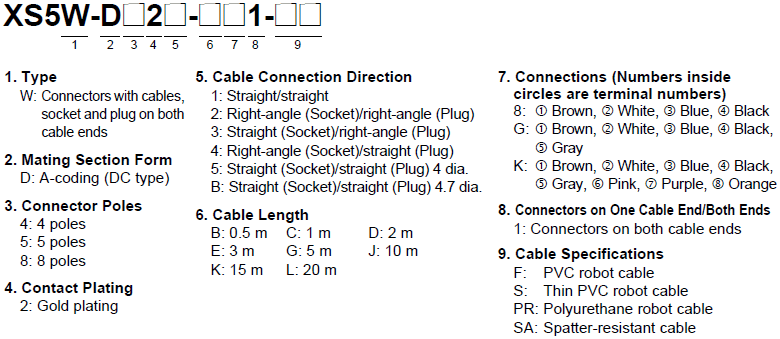

Use this model number legend to identify products from their model number.
Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
XS5
Round Water-resistant Connectors (M12 Smartclick)
Round Water-resistive Smartclick Connectors That Reduce Installation Work
Related Contents
- Power Supplies / In Addition
- Sensor I/O Connectors / Sensor Controllers
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: April 1, 2021
XS5W Connectors with Cables, Socket and Plug on Both Cable Ends
| Cable specifications | Cable
length L (m) |
Cable
diameter (mm) |
Straight (Socket)/
Straight (Plug) |
Right-angle (Socket)/
Right-angle (Plug) |
UL |
|---|---|---|---|---|---|
| Model | Model | ||||
| Fire-retardant,
PVC Robot Cable |
0.5 | 6 dia. | XS5W-D421-B81-F | — | UL2238 certified
(File no. E207683) |
| 1 | XS5W-D421-C81-F | — | |||
| 2 | XS5W-D421-D81-F | XS5W-D422-D81-F | |||
| 3 | XS5W-D421-E81-F | — | |||
| 4 | XS5W-D421-F81-F | — | |||
| 5 | XS5W-D421-G81-F | XS5W-D422-G81-F | |||
| 10 | XS5W-D421-J81-F | — | |||
| 15 | XS5W-D421-K81-F | — | |||
| 20 | XS5W-D421-L81-F | — | |||
| Fire-retardant,
thin PVC Robot Cable |
0.5 | 4 dia. | XS5W-D425-B81-S | — | — |
| 1 | XS5W-D425-C81-S | — | |||
| 2 | XS5W-D425-D81-S | — | |||
| 3 | XS5W-D425-E81-S | — | |||
| 4 | XS5W-D425-F81-S | — | |||
| 5 | XS5W-D425-G81-S | — | |||
| 10 | XS5W-D425-J81-S | — | |||
| Oil-resistant
polyurethane robot cable |
1 | 4.7 dia. | XS5W-D42B-C81-PR | — | — |
| 2 | XS5W-D42B-D81-PR | — | |||
| 5 | XS5W-D42B-G81-PR | — | |||
| 10 | XS5W-D42B-J81-PR | — | |||
| Oil-resistant
polyurethane cable |
2 | 6 dia. | XS5W-D421-D81-P | — | — |
| 5 | XS5W-D421-G81-P | — | |||
| 10 | XS5W-D421-J81-P | — | |||
| Spatter-resistant Cable | 2 | 6.6 dia. | XS5W-D421-D81-SA | — | — |
| 5 | XS5W-D421-G81-SA | — |
| Cable specifications | Cable length L
(m) |
Cable
diameter (mm) |
Straight (Socket)/
Right-angle (Plug) |
Right-angle (Socket)/
Straight (Plug) |
UL |
|---|---|---|---|---|---|
| Model | Model | ||||
| Fire-retardant,
PVC Robot Cable |
2 | 6 dia. | XS5W-D423-D81-F | XS5W-D424-D81-F | UL2238 certified
(File no. E207683) |
| 5 | XS5W-D423-G81-F | XS5W-D424-G81-F |
Note: Ask your OMRON representative about other cable lengths.
XS5F Connectors with Cables, Socket on One Cable End

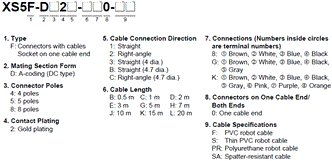

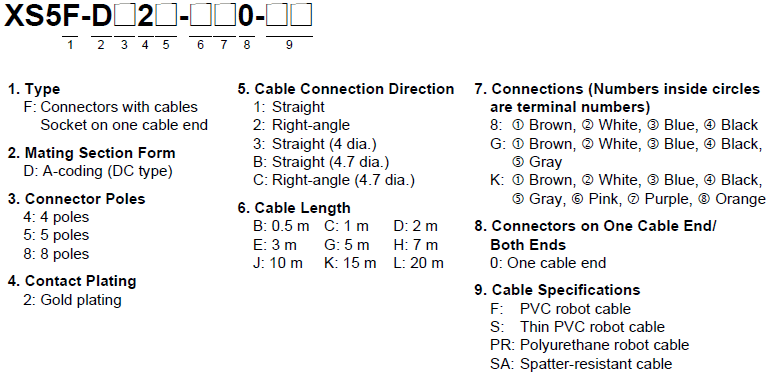

Use this model number legend to identify products from their model number.
Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
| Cable specifications | Cable
length L (m) |
Cable
diameter (mm) |
Straight Connectors | Right-angle
Connectors |
UL |
|---|---|---|---|---|---|
| Model | Model | ||||
| Fire-retardant,
PVC Robot Cable |
1 | 6 dia. | XS5F-D421-C80-F | XS5F-D422-C80-F | UL2238 certified
(File no. E207683) |
| 2 | XS5F-D421-D80-F | XS5F-D422-D80-F | |||
| 3 | XS5F-D421-E80-F | XS5F-D422-E80-F | |||
| 5 | XS5F-D421-G80-F | XS5F-D422-G80-F | |||
| 10 | XS5F-D421-J80-F | XS5F-D422-J80-F | |||
| 15 | XS5F-D421-K80-F | — | |||
| 20 | XS5F-D421-L80-F | — | |||
| Fire-retardant,
thin PVC Robot Cable |
1 | 4 dia. | XS5F-D423-C80-S | — | — |
| 2 | XS5F-D423-D80-S | — | |||
| 3 | XS5F-D423-E80-S | — | |||
| 5 | XS5F-D423-G80-S | — | |||
| 10 | XS5F-D423-J80-S | — | |||
| Oil-resistant
polyurethane robot cable |
1 | 4.7 dia. | XS5F-D42B-C80-PR | XS5F-D42C-C80-PR | — |
| 2 | XS5F-D42B-D80-PR | XS5F-D42C-D80-PR | |||
| 5 | XS5F-D42B-G80-PR | XS5F-D42C-G80-PR | |||
| 10 | XS5F-D42B-J80-PR | XS5F-D42C-J80-PR | |||
| Oil-resistant
polyurethane cable |
2 | 6 dia. | XS5F-D421-D80-P | XS5F-D422-D80-P | — |
| 5 | XS5F-D421-G80-P | XS5F-D422-G80-P | |||
| 10 | XS5F-D421-J80-P | XS5F-D422-J80-P | |||
| Spatter-resistant Cable | 2 | 6.6 dia. | XS5F-D421-D80-SA | — | — |
| 5 | XS5F-D421-G80-SA | — |
Note: Ask your OMRON representative about other cable lengths, and about 2-core cables.
XS5H Connectors with Cables, Plug on One Cable End

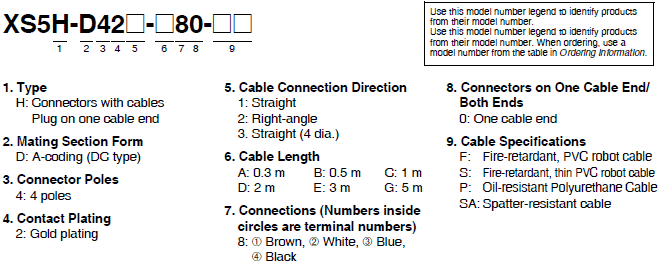

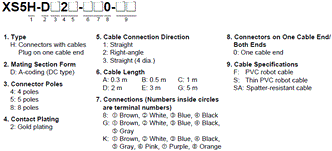

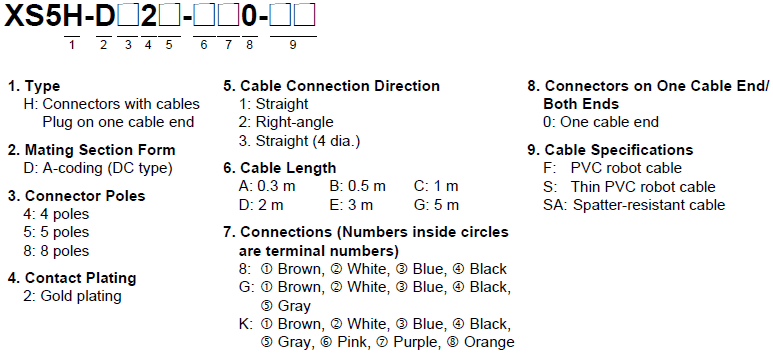

Use this model number legend to identify products from their model number.
Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
| Cable specifications | Cable length
L (m) |
Cable
diameter (mm) |
Straight Connectors | Right-angle
Connectors |
UL |
|---|---|---|---|---|---|
| Model | Model | ||||
| Fire-retardant,
PVC Robot Cable |
0.3 | 6 dia. | XS5H-D421-A80-F | XS5H-D422-A80-F | UL2238 certified
(File no. E207683) |
| 0.5 | XS5H-D421-B80-F | — | |||
| 1 | XS5H-D421-C80-F | XS5H-D422-C80-F | |||
| 2 | XS5H-D421-D80-F | XS5H-D422-D80-F | |||
| 3 | XS5H-D421-E80-F | — | |||
| 5 | XS5H-D421-G80-F | XS5H-D422-G80-F | |||
| Fire-retardant,
thin PVC robot cable |
0.3 | 4 dia. | XS5H-D423-A80-S | — | — |
| 0.5 | XS5H-D423-B80-S | — | |||
| 1 | XS5H-D423-C80-S | — | |||
| 2 | XS5H-D423-D80-S | — | |||
| 5 | XS5H-D423-G80-S | — | |||
| Oil-resistant
polyurethane cable |
0.3 | 6 dia. | XS5H-D421-A80-P | XS5H-D422-A80-P | — |
| 2 | XS5H-D421-D80-P | XS5H-D422-D80-P | |||
| 5 | XS5H-D421-G80-P | XS5H-D422-G80-P | |||
| Spatter-resistant Cable | 0.3 | 6.6 dia. | XS5H-D421-A80-SA | — | — |
| 1 | XS5H-D421-C80-SA | — |
Note: Ask your OMRON representative about other cable lengths.
XS5[] Eight-pole Connectors with Cables
| Type | Cable specifications | Cable
connection direction |
Number
of cores |
Cable
length L (m) |
Applicable
wire gauge |
Model | UL |
|---|---|---|---|---|---|---|---|
| Socket on one
cable end |
6.3 mm dia.
AWG23 (0.25 mm2) Structure: 0.08 mm/ 60 wires |
Straight | 10 | 2 | — | XS5F-D821-DH0-R | — |
| 5 | XS5F-D821-GH0-R | ||||||
| 10 | XS5F-D821-JH0-R | ||||||
| Panel-mounting
plug |
— | — | — | — | AWG22 to 28 | XS5M-D827-4 |
XS5G Assembly Connector Plugs
| No. of
poles |
Connection
method |
Suitable cable
(mm) |
Core conductor
size (mm2) |
Suitable
sheath material |
Straight
Connectors |
Right-angle
Connectors |
UL |
|---|---|---|---|---|---|---|---|
| Model | Model | ||||||
| 4 | IDC | 3 to 8 dia. | 0.14 to 0.75 *1 | PVC, PE,
PUR |
XS5G-D418 | — | — |
| Crimping | 6 dia. (5 to 6 dia.) | 0.18 to 0.3
0.5 to 0.75 *2 |
XS5G-D4C1 | — | UL2238
certified (File no. E207683) |
||
| 4 dia. (4 to 5 dia.) | XS5G-D4C3 | — | |||||
| 3 dia. (3 to 4 dia.) | XS5G-D4C5 | — | |||||
| Soldering | 6 dia. (5 to 6 dia.) | 0.5 max. | XS5G-D421 | XS5G-D422 | |||
| 4 dia. (4 to 5 dia.) | XS5G-D423 | XS5G-D424 | |||||
| 3 dia. (3 to 4 dia.) | XS5G-D425 | XS5G-D426 | |||||
| Screw-on | 6 dia. (5 to 6 dia.) | 0.18 to 0.75 | XS5G-D4S1 | XS5G-D4S2 | |||
| 4 dia. (4 to 5 dia.) | XS5G-D4S3 | XS5G-D4S4 | |||||
| 3 dia. (3 to 4 dia.) | XS5G-D4S5 | XS5G-D4S6 | |||||
| 8 dia. (7 to 8 dia.) | XS5G-D4S7 | — | |||||
| 7 dia. (6 to 7 dia.) | XS5G-D4S9 | — | |||||
| 5 | Screw-on | 6 dia. (5 to 6 dia.) | XS5G-D5S1 | — | |||
| 4 dia. (4 to 5 dia.) | XS5G-D5S3 | — | |||||
| 3 dia. (3 to 4 dia.) | XS5G-D5S5 | — | |||||
| 8 dia. (7 to 8 dia.) | XS5G-D5S7 | — | |||||
| 7 dia. (6 to 7 dia.) | XS5G-D5S9 | — |
*1. Minimum wire diameter: 0.08 mm, External sheath diameter of wire covering: 0.7 to 2.6 mm, Material of wire
covering: PVC and PE
*2. There are two types of contacts.
Note: XS5G Screw-on Plugs cannot be connected to side by side to the CN1 and CN2 connectors of XS2R or XS5R Y-Joint
Sockets/Plugs.
Use a cable of mentioning. If you do not use one of these cables, there is a possibility that the performance can't be
met.
covering: PVC and PE
*2. There are two types of contacts.
Note: XS5G Screw-on Plugs cannot be connected to side by side to the CN1 and CN2 connectors of XS2R or XS5R Y-Joint
Sockets/Plugs.
Use a cable of mentioning. If you do not use one of these cables, there is a possibility that the performance can't be
met.
Accessories (Order Separately) Crimping Pin for XS5G
| Suitable core size (mm2) | Model |
|---|---|
| 0.18 to 0.3 | XS5U-3121 |
| 0.5 to 0.75 | XS5U-3122 |
XS5C Assembly Connector Sockets
| No. of
poles |
Connection
method |
Suitable cable
(mm) |
Core conductor size
(mm2) |
Suitable
sheath material |
Straight
Connectors |
Right-angle
Connectors |
UL |
|---|---|---|---|---|---|---|---|
| Model | Model | ||||||
| 4 | IDC | 3 to 8 dia. | 0.14 to 0.75 *1 | PVC, PE,
PUR |
XS5C-D418 | — | — |
| Crimping | 6 dia. (5 to 6 dia.) | 0.18 to 0.3
0.5 to 0.75 *2 |
XS5C-D4C1 | XS5C-D4C2 | UL2238
certified (File no. E207683) |
||
| 4 dia. (4 to 5 dia.) | XS5C-D4C3 | XS5C-D4C4 | |||||
| 3 dia. (3 to 4 dia.) | XS5C-D4C5 | XS5C-D4C6 | |||||
| Soldering | 6 dia. (5 to 6 dia.) | 0.5 max. | XS5C-D421 | XS5C-D422 | |||
| 4 dia. (4 to 5 dia.) | XS5C-D423 | XS5C-D424 | |||||
| 3 dia. (3 to 4 dia.) | XS5C-D425 | XS5C-D426 | |||||
| Screw-on | 6 dia. (5 to 6 dia.) | 0.18 to 0.75 | XS5C-D4S1 | XS5C-D4S2 | |||
| 4 dia. (4 to 5 dia.) | XS5C-D4S3 | XS5C-D4S4 | |||||
| 3 dia. (3 to 4 dia.) | XS5C-D4S5 | XS5C-D4S6 | |||||
| 8 dia. (7 to 8 dia.) | XS5C-D4S7 | — | |||||
| 7 dia. (6 to 7 dia.) | XS5C-D4S9 | — | |||||
| 5 | Screw-on | 6 dia. (5 to 6 dia.) | XS5C-D5S1 | — | |||
| 4 dia. (4 to 5 dia.) | XS5C-D5S3 | — | |||||
| 3 dia. (3 to 4 dia.) | XS5C-D5S5 | — | |||||
| 8 dia. (7 to 8 dia.) | XS5C-D5S7 | — | |||||
| 7 dia. (6 to 7 dia.) | XS5C-D5S9 | — |
*1. Minimum wire diameter: 0.08 mm, External sheath diameter of wire covering: 0.7 to 2.6 mm, Material of wire
covering: PVC and PE
*2. There are two types of contacts.
Note: Use a cable of mentioning. If you do not use one of these cables, there is a possibility that the performance can't be
met.
covering: PVC and PE
*2. There are two types of contacts.
Note: Use a cable of mentioning. If you do not use one of these cables, there is a possibility that the performance can't be
met.
Accessories (Order Separately) Crimping Pin for XS5C
| Suitable core size (mm2) | Model |
|---|---|
| 0.18 to 0.3 | XS5U-2221 |
| 0.5 to 0.75 | XS5U-2222 |
XS5R Y-Joint Plug/Socket Connectors
| Cable | Connector | Cable length (m) | Model | UL |
|---|---|---|---|---|
| With cable | Connectors on both cable ends | 0.5 | XS5R-D426-B11-F | UL2238 certified
(File no. E207683) |
| 1 | XS5R-D426-C11-F | |||
| 2 | XS5R-D426-D11-F | |||
| 3 | XS5R-D426-E11-F | |||
| Connector on one cable end | 2 | XS5R-D426-D10-F | ||
| 5 | XS5R-D426-G10-F |
| Cable | Connector | Cable length (m) | Model | UL |
|---|---|---|---|---|
| Without cable | Connectors on both cable ends | — | XS5R-D426-1 | UL2238 certified
(File no. E207683) |
| XS5R-D426-5 |
Note 1. Ask your OMRON representative about other specifications.
2. XS2G/XS5G Assembled Connectors with screw-on connections cannot be connected to both CN1 and CN2 at the
same time.
2. XS2G/XS5G Assembled Connectors with screw-on connections cannot be connected to both CN1 and CN2 at the
same time.
XS5P Panel-mounting Sockets
| Type | No. of poles | Lock | Wire length (m) | Model | UL |
|---|---|---|---|---|---|
| With wire | 4 | Rear lock | 0.5 | XS5P-D426-5 | UL2238 certified
(File no. E207683) |
| Front lock | XS5P-D427-5 |
| Type | No. of poles | Lock* | Applicable wires | Model | UL |
|---|---|---|---|---|---|
| Solder cup pins | 4 | Rear lock | AWG20 to AWG28 | XS5P-D426-4 | — |
| Front lock | XS5P-D427-4 | ||||
| 5 | Rear lock | XS5P-D526-4 | |||
| Front lock | XS5P-D527-4 |
* Install the rear lock type from the front of the panel and tighten the nut from the rear.
Install the front lock type from the rear of the panel and tighten the nut from the front.
Install the front lock type from the rear of the panel and tighten the nut from the front.
XS5M Panel-mounting Plugs
| Type | No. of poles | Lock | Wire length (m) | Model | UL |
|---|---|---|---|---|---|
| With wire | 4 | Rear lock | 0.5 | XS5M-D426-5 | UL2238 certified
(File no. E207683) |
| Front lock | XS5M-D427-5 |
| Type | No. of poles | Lock* | Applicable wires | Model | UL |
|---|---|---|---|---|---|
| Solder cup pins | 4 | Rear lock | AWG20 to AWG28 | XS5M-D426-4 | — |
| Front lock | XS5M-D427-4 | ||||
| 5 | Rear lock | XS5M-D526-4 | |||
| Front lock | XS5M-D527-4 |
* Install the rear lock type from the front of the panel and tighten the nut from the rear.
Install the front lock type from the rear of the panel and tighten the nut from the front.
Install the front lock type from the rear of the panel and tighten the nut from the front.
Common Accessories and Tools (Order Separately)
Connector Covers
Waterproof Covers
The Waterproof Cover ensures IP67. When mounting the Water-resistive Cover to a Connector, be sure to apply a torque range between 0.39 and 0.49 N·m to tighten the Water-resistive Cover.
XS5Z-11 is Smartclick mechanism. There’s no need to keep track of locking torque.
| Model | Material | Suitable connector | |
|---|---|---|---|
| Model | Mounting portion | ||
| XS2Z-11 | Brass/nickel plated | XS5G/XS5H/XS5M/XS5R/XS5W/XS2G/XS2H/XS2M/XS2R/XS2W | M12 male screw |
| XS5Z-11 | PBT | XS5C/XS5F/XS5P/XS5R/XS5W/XW3D | M12 female screw |
Dust Covers
The Dust Cover is for dust prevention and does not ensure IP67 degree of protection.
When mounting the Dust Cover to a Connector, be sure to press the Dust Cover onto the Connector until the Connector is fully inserted into the Dust Cover.
| Model | Material | Suitable connector | |
|---|---|---|---|
| Model | Mounting portion | ||
| XS2Z-13 | Rubber/black | XS5G/XS5H/XS5M/XS5R/XS5W/XS2G/XS2H/XS2M/XS2R | M12 male screw |
| XS2Z-14 | XS5C/XS5F/XS5P/XS5R/XS5W/XS2C/XS2F/XS2P/XS2R/XS2W/
XW3B/XW3D |
Pin block (female pins) | |
| XS2Z-15 | M12 female screw | ||
Sputter Protective Cover
The Sputter Protective Cover protects the connector from weld sputter.
Make sure it covers the entire connector.
| Model | Material | Suitable connector |
|---|---|---|
| XS2Z-31 | Silicone rubber/black | XS5F/XS5H/XS5W/XS2F/XS2H/XS2W |
Tools
Crimp Tool/Locator
Use the Crimp Tool to crimp a cable core to the XS5U or XS2U Crimping Pin used with the XS[]C or XS[]G Crimping Connector. Both the Crimp Tool and the optional Locator are required for use.
• The XY2F-0002 Crimp Tool is DMC's AFM8 (M22520/2-01).
• The XY2F-0003 Locator is a component for positioning crimp terminals. Use the screw provided to mount the Locator to the locator guide of the Crimp Tool.
| Model | |
|---|---|
| Crimp Tool | XY2F-0002 |
| Locator | XY2F-0003 |
Pin-block Extraction Tool
Use this tool to extract a Pin Block from the covers in order to make wiring changes or corrections after the cover has been mounted to the pin block for Connector Assemblies (XS[]C/XS[]G, soldering/crimping).
| Model |
|---|
| XY2F-0001 |
last update: April 1, 2021
Top of Page
© Copyright OMRON Corporation 2007 - 2024. All Rights Reserved.
