XS5

Round Water-resistant Connectors (M12 Smartclick)

XS5

Round Water-resistive Smartclick Connectors That Reduce Installation Work

about this Product Family

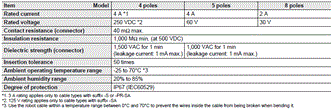

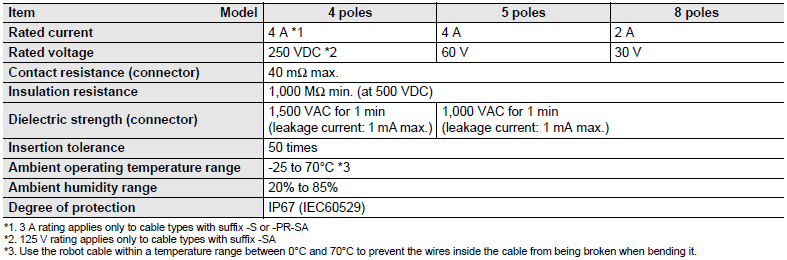

Ratings and Specifications

Item XS5-F, XS5C/G, XS5P/M XS5-S/PR XS5-P/SA
Rated current 4 A 3 A 3 A
Rated voltage 250 VDC 250 VDC 125 VDC
Contact resistance (connector) 40 m max. (20 mV max., 100 mA max.)
Insulation resistance 1,000 M min. (at 500 VDC)
Dielectric strength (connector) 1,500 VAC for 1 min (leakage current: 1 mA max.)
Degree of protection IP67 (IEC60529)
Insertion tolerance 50 times
Lock strength Tensile: 100 N/15 s, Torsion: 1 N·m/15 s
Cable holding strength Tensile: 100 N/15 s, Torsion: 1 N·m/15 s (for cable diameter of 6 mm) *2
Lock operating force 0.1 to 0.25 N·m
Ambient operating temperature range -25 to 70°C *3
Ambient humidity range 20% to 85%
Number of pressure-weld repairs *1 10 times max. (Limited to the same external diameter and wire diameter.)

*1. Only XS5C/G (IDC models)
*2. Connectors with cables only. Refer to product specifications for details.
*3. Use the robot cable within a temperature range between 0°C and 70°C to prevent the wires inside the cable from
      being broken when bending it.

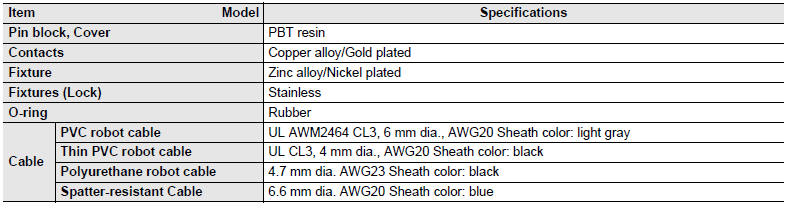

Materials and Finishes

Model XS5F/H/W XS5R XS5M/P XS5C/G
(Crimping,
Soldering)
XS5C/G
(Screw-on)
XS5C/G
(IDC)
Contacts Copper alloy/Nickel plated
Fixture Nickel plated zinc alloy
Fixtures (Lock) * Stainless
Pin block PBT resin
O-ring Rubber
Cover PBT resin PBT resin
Cable Fire-retardant,
PVC robot cable
UL AWM2464 CL3, 6 mm dia.,
AWG20
Sheath color: light gray
Fire-retardant,
thin PVC
robot cable
UL CL3, 4 mm dia.,
AWG20
Sheath color: black
Oil-resistant
polyurethane
robot cable
4.7 mm dia.
AWG23
Sheath color: black
Oil-resistant
polyurethane
cable
6 mm dia.
AWG20
Sheath color: dark gray
Spatter-resistant
Cable
6.6 mm dia.
AWG20
Sheath color: blue

* Only plug

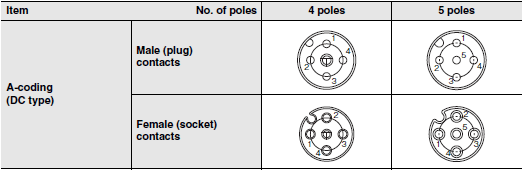

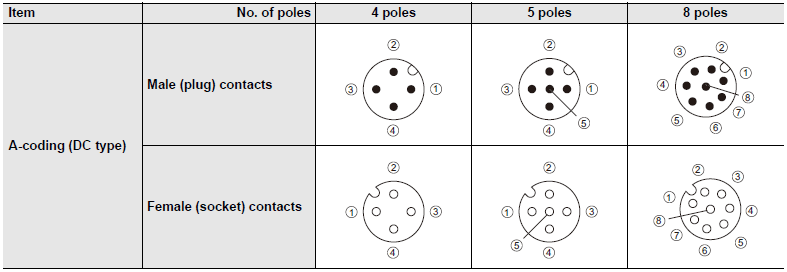

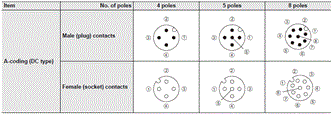

Pin Arrangement (Engaged Side)

XS5 Specifications 5

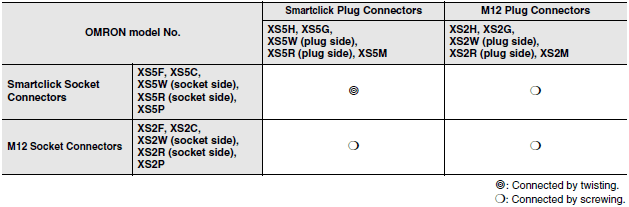

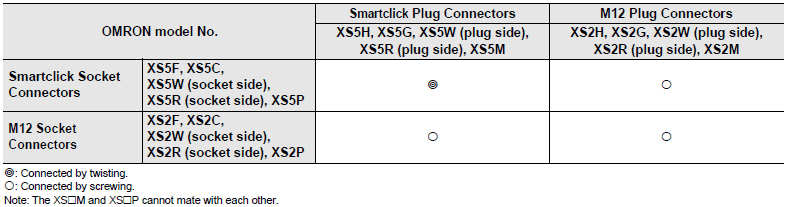

Connection

XS5 Specifications 6

Note: The XS[]M and XS[]P cannot mate with each other.

XS5[] Eight-pole Connectors with Cables

Ratings and Specifications

Rated current 1.5 A
Rated voltage 36 VDC
Contact resistance 40 mΩ max. (at 20 mVDC max. and 100 mA max.)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC for 1 min (leakage current: 1 mA max.)
Degree of protection IP67 (IEC60529)
Insertion tolerance 50 times
Ambient operating temperature range -25 to 70°C
Ambient humidity range 20% to 85%

Materials and Finish

Contacts Brass, gold plating
Fixture Nickel plated zinc alloy *1
Body Nickel plated zinc alloy *2
Nut Nickel plated brass *2
Fixtures (lock) Stainless *2
Pin block PBT resin
Cover *1 Soft PBT resin
Seal resin *2 Rubber
O-ring *1

*1. XS5F only.
*2. XS5M only.
