GlobalCable with fluororesin sheath
XS5[]R
Oil-resistant Connectors
![XS5[]R](/Images/l_3547-13-263822-198x198.jpg)
Smartclick Oil-resistant Connectors with Improved Oil Resistance
Related Contents
- Power Supplies / In Addition
- Sensor I/O Connectors / Sensor Controllers
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: February 1, 2019
XS5FR Connector Connected to Cable, Socket on One Cable End

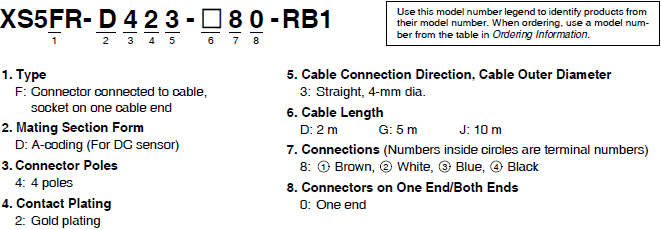

Model Number Structure
Model Number Legend
![XS5[]R Lineup 3](/Images/3547_lu_113-289907.gif)
Ordering Information
| Type | Cable outer
diameter (mm) |
No. of
conductors |
Cable length
(m) |
Model | UL |
|---|---|---|---|---|---|
| Socket on One Cable End | 4 dia. | 4 | 2 | XS5FR-D423-D80-RB1 | --- |
| 5 | XS5FR-D423-G80-RB1 | ||||
| 10 | XS5FR-D423-J80-RB1 |
XS5WR Connectors Connected to Cable, Socket and Plug on Cable Ends
Cable with fluororesin sheath

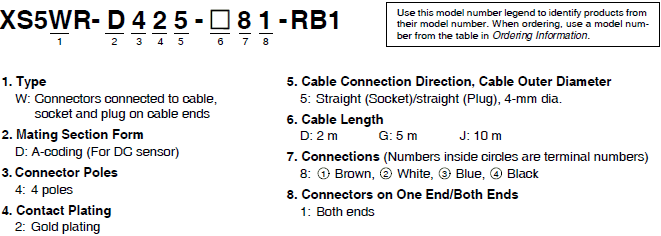

Model Number Structure
Model Number Legend
![XS5[]R Lineup 7](/Images/3547_lu_313-289908.gif)
Ordering Information
| Type | Cable outer
diameter (mm) |
No. of
conductors |
Cable length (m) | Model | UL |
|---|---|---|---|---|---|
| Socket and
Plug on Cable Ends |
4 dia. | 4 | 2 | XS5WR-D425-D81-RB1 | --- |
| 5 | XS5WR-D425-G81-RB1 | ||||
| 10 | XS5WR-D425-J81-RB1 |
last update: February 1, 2019
