Smartclick Oil-resistant Connectors with Improved Oil Resistance

Item list of XS5[]R

Related Contents

last update: February 1, 2019

Ratings and Specifications

Rated current 1 A
Rated voltage 30 VDC
Contact resistance (connector) 40 mΩ max. (20 mV max., 100 mA max.)
Insulation resistance 1,000 MΩ min. (at 500 VDC) *1
Dielectric strength (connector) 1,500 VAC for 1 min (leakage current: 1 mA max.)
Degree of protection IP67 (IEC 60529) and IP67G (JIS C 0920 Annex 1) *2
Passed OMRON's Oil-resistant Component Evaluation Standards*3
(Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.)
Insertion tolerance 50 times min.
Lock strength Tensile: 100 N/15 s, Torsion: 1 N·m/15 s
Cable holding strength Tensile: 100 N/15 s
Ambient operating temperature range/
Ambient storage temperature range		 -25 to +70°C
Ambient humidity range 20% to 85%

*1. This value represents the condition when the Connector is shipped from the factory.
*2. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*3. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
The Pre-wired Connector type meets the degree of protection when it is correctly connected with an XS5[]R Oil-resistant Connector.
The degree of protection is not satisfied with the part where there is no XS5FR Oil-resistant Connector connected and cable wires are uncovered.

Materials and Finishes

Contacts Phosphor bronze/Gold plating
Fixtures Zinc alloy/Nickel plating
Fixtures (Lock) Stainless steel
Pin block PA resin (UL 94 HB)
O-ring New rubber material combining HNBR and fluororubber
Cover PA resin (UL 94 HB)
Cable Cable with fluororesin sheath: 4-mm dia.
Core wire: 0.2mm2

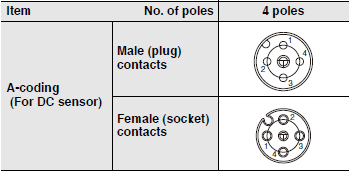

Connector Pinout Diagram (from Mating Side)

XS5[]R Specifications 4
