Global(Unit: mm)
K6CM
Motor Condition Monitoring Device
Quantifying the status of a three-phase induction motor.
Software Download
You can download software for the K6CM.
Related Contents
- Power Supplies / In Addition
- Condition Monitoring Device
- Special Contents
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: April 1, 2022
K6CM-CI
List of Models

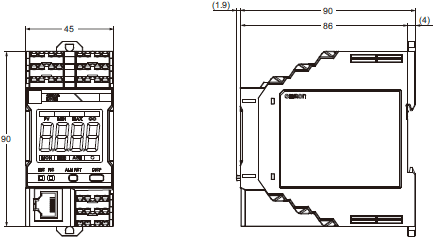

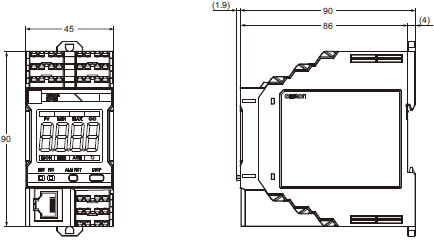

K6CM-CI
CT

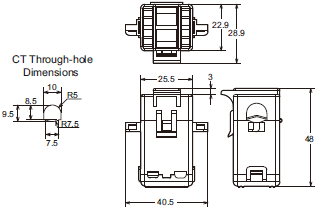

K6CM-CICB005

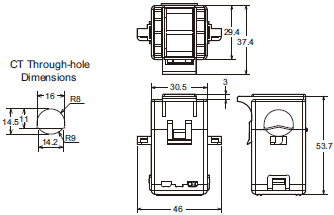

K6CM-CICB025

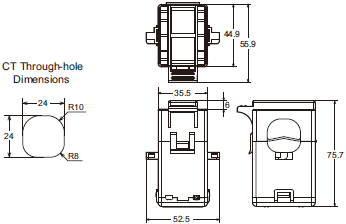

K6CM-CICB100

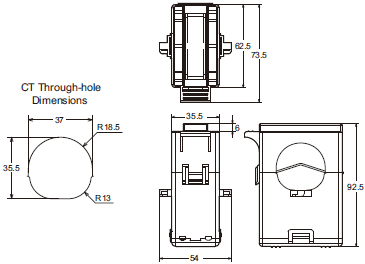

K6CM-CICB200
K6CM-CICB400
K6CM-CICB600
Cable supplied with CT
The cable supplied with the CT is shipped in the connected state.
K6CM-VB
List of Models

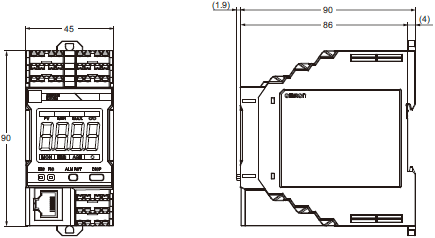

K6CM-VB
Vibration & temperature sensor
K6CM-VBS1

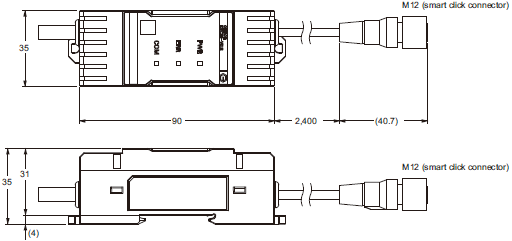

Pre-amplifier

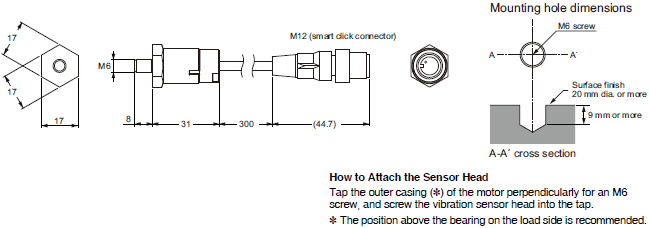

Sensor head
K6CM-VBSAT1
Adhesive attachment
Use the adhesive attachment if the motor cannot be tapped.
Sensor head
Material: Stainless steel
How to Attach the Sensor Head
Prepare a flat surface with a radius of at least 25 mm on the motor outer casing (*).
Attach the attachment to the flat surface you prepared with an adhesive.
Screw the vibration sensor head into the attachment.
* The position above the bearing on the load side is recommended.
K6CM-VBSAT2
Magnet mounting attachment
The magnet mounting attachment can be used when the motor case is made of magnetic material such as steel. Mountable even if the installation surface is curved.
Material: Stainless steel
K6CM-IS
List of Models
K6CM-IS

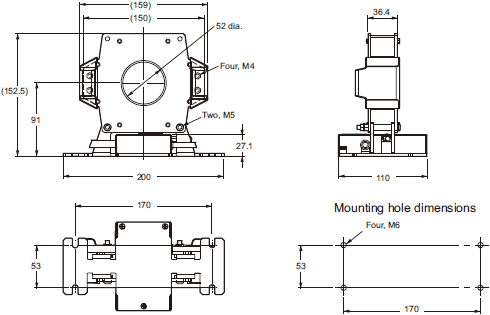

ZCT (IRT)
Indoor split type
K6CM-ISZBI52
last update: April 1, 2022
