XS5W-T For Communication, Socket and Plug on Both Cable Ends
M12 Smartclick Straight Plug/M12 Smartclick Straight Plug
XS5W-T421-[]M2-[][]
![XS5[]-T Dimensions 2](/Images/3966_dm_113-324711.gif)

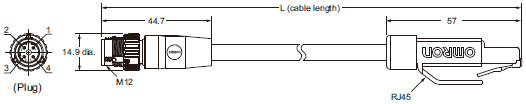

M12 Smartclick Straight Plug/RJ45
XS5W-T421-[]MC-[][]
![XS5[]-T Dimensions 3](/Images/3966_dm_213-324712.gif)

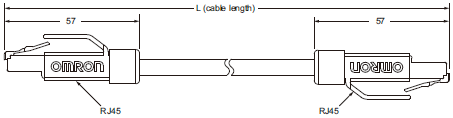

RJ45/RJ45
XS5W-T421-[]MD-[][]
![XS5[]-T Dimensions 4](/Images/3966_dm_313-324713.gif)
M12 Smartclick Straight Plug/M12 Smartclick Straight Socket
XS5W-T421-[]M1-[][]
![XS5[]-T Dimensions 5](/Images/3966_dm_413-324714.gif)

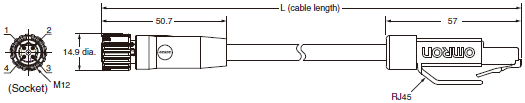

M12 Smartclick Straight Socket/RJ45
XS5W-T421-[]ME-K
![XS5[]-T Dimensions 6](/Images/3966_dm_513-324715.gif)

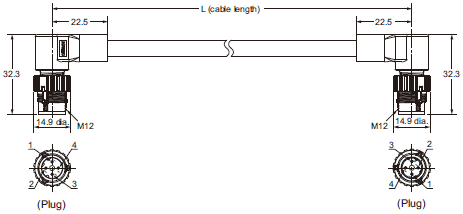

M12 Smartclick Right-angle/M12 Smartclick Right-angle
XS5W-T422-[]M2-K
![XS5[]-T Dimensions 7](/Images/3966_dm_613-324716.gif)

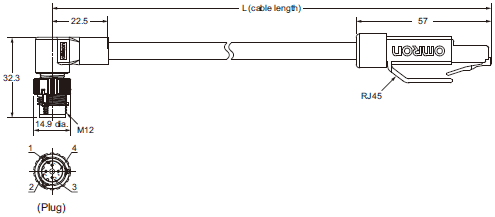

M12 Smartclick Right-angle Plug/RJ45)
XS5W-T422-[]MC-K
![XS5[]-T Dimensions 8](/Images/3966_dm_713-324717.gif)
XS5H-T For Communication, Plug on One Cable End
M12 Smartclick Straight Plug
XS5H-T421-[]M0-K
![XS5[]-T Dimensions 10](/Images/3966_dm_813-324718.gif)

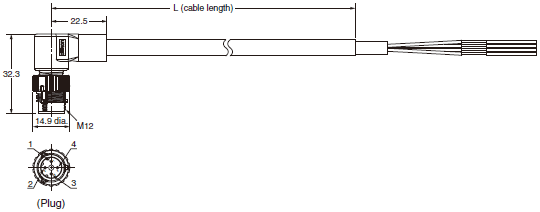

M12 Smartclick Right-angle Plug
XS5H-T422-[]M0-K
![XS5[]-T Dimensions 11](/Images/3966_dm_913-324719.gif)

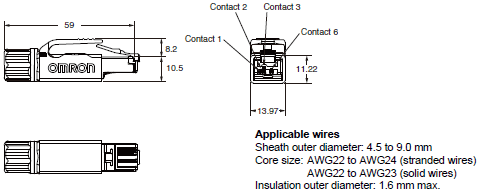

RJ45 Assembly Connector
XS6G-T421-1
![XS5[]-T Dimensions 12](/Images/3966_dm_1013-324720.gif)

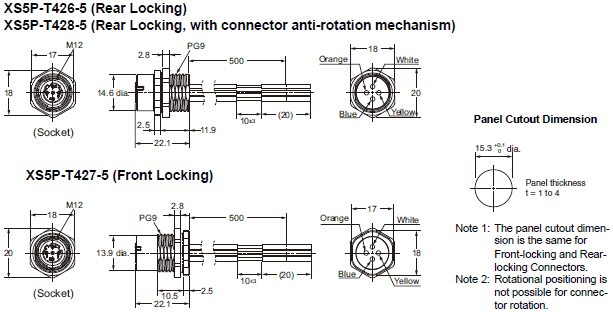

XS5P-T Panel-mounting Sockets
With wire
XS5P-T42[]-5
![XS5[]-T Dimensions 14](/Images/3966_dm_1113-324721.gif)

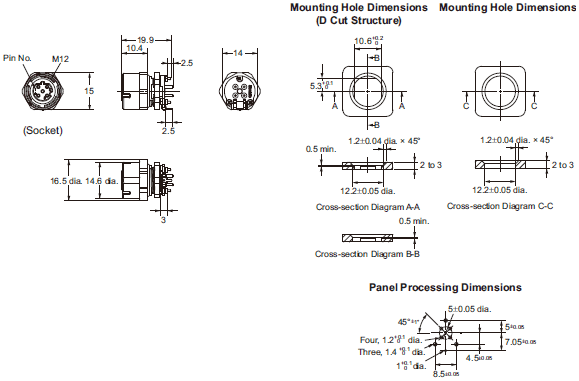

M12 Panel-mounting PCB Straight Terminals
XS5P-T426-1
![XS5[]-T Dimensions 15](/Images/3966_dm_1213-324722.gif)
