XS5W-T For Communication, Socket and Plug on Both Cable Ends
Model Number Structure

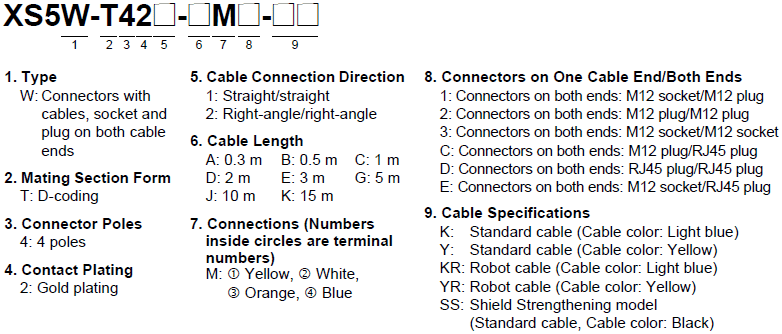

Model Number Legend
![XS5[]-T Lineup 3](/Images/3966_lu_113-324723.gif)
Ordering Information
Standard cable, Robot cable (straight)
| Type | Cable length
L (m) |
Standard cable/Blue | Standard cable/Yellow | Robot cable/Blue | Robot cable/Yellow |
|---|---|---|---|---|---|
| Model | Model | Model | Model | ||
M12 Plug-M12 Plug
 |
0.5 | XS5W-T421-BM2-K | XS5W-T421-BM2-Y | XS5W-T421-CM2-KR | XS5W-T421-CM2-YR |
| 1 | XS5W-T421-CM2-K | XS5W-T421-CM2-Y | XS5W-T421-DM2-KR | XS5W-T421-DM2-YR | |
| 2 | XS5W-T421-DM2-K | XS5W-T421-DM2-Y | XS5W-T421-EM2-KR | XS5W-T421-EM2-YR | |
| 3 | XS5W-T421-EM2-K | XS5W-T421-EM2-Y | XS5W-T421-GM2-KR | XS5W-T421-GM2-YR | |
| 5 | XS5W-T421-GM2-K | XS5W-T421-GM2-Y | XS5W-T421-JM2-KR | --- | |
| 10 | XS5W-T421-JM2-K | --- | XS5W-T421-KM2-KR | --- | |
| 15 | XS5W-T421-KM2-K | --- | --- | --- | |
M12 Plug-RJ45
 |
0.5 | XS5W-T421-BMC-K | XS5W-T421-BMC-Y | XS5W-T421-BMC-KR | --- |
| 1 | XS5W-T421-CMC-K | XS5W-T421-CMC-Y | XS5W-T421-CMC-KR | --- | |
| 2 | XS5W-T421-DMC-K | XS5W-T421-DMC-Y | XS5W-T421-DMC-KR | --- | |
| 3 | XS5W-T421-EMC-K | XS5W-T421-EMC-Y | XS5W-T421-EMC-KR | XS5W-T421-EMC-YR | |
| 5 | XS5W-T421-GMC-K | XS5W-T421-GMC-Y | XS5W-T421-GMC-KR | XS5W-T421-GMC-YR | |
| 10 | XS5W-T421-JMC-K | --- | XS5W-T421-JMC-KR | XS5W-T421-JMC-YR | |
| 15 | XS5W-T421-KMC-K | --- | XS5W-T421-KMC-KR | XS5W-T421-KMC-YR | |
RJ45-RJ45
 |
0.5 | XS5W-T421-BMD-K | --- | XS5W-T421-BMD-KR | XS5W-T421-BMD-YR |
| 1 | XS5W-T421-CMD-K | --- | XS5W-T421-CMD-KR | XS5W-T421-CMD-YR | |
| 2 | XS5W-T421-DMD-K | --- | XS5W-T421-DMD-KR | XS5W-T421-DMD-YR | |
| 3 | XS5W-T421-EMD-K | --- | XS5W-T421-EMD-KR | XS5W-T421-EMD-YR | |
| 5 | XS5W-T421-GMD-K | --- | XS5W-T421-GMD-KR | XS5W-T421-GMD-YR | |
| 10 | XS5W-T421-JMD-K | --- | XS5W-T421-JMD-KR | --- | |
| 15 | XS5W-T421-KMD-K | --- | XS5W-T421-KMD-KR | --- |
| Type | Cable length L (m) | Standard cable/Blue | Robot cable/Blue |
|---|---|---|---|
| Model | Model | ||
M12 Plug-M12 Socket
 |
0.5 | XS5W-T421-BM1-K | XS5W-T421-BM1-KR |
| 1 | XS5W-T421-CM1-K | XS5W-T421-CM1-KR | |
| 2 | XS5W-T421-DM1-K | XS5W-T421-DM1-KR | |
| 3 | XS5W-T421-EM1-K | XS5W-T421-EM1-KR | |
| 5 | XS5W-T421-GM1-K | XS5W-T421-GM1-KR | |
| 10 | XS5W-T421-JM1-K | XS5W-T421-JM1-KR | |
| 15 | XS5W-T421-KM1-K | XS5W-T421-KM1-KR | |
M12 Socket-RJ45
 |
0.5 | XS5W-T421-BME-K | --- |
| 1 | XS5W-T421-CME-K | --- | |
| 2 | XS5W-T421-DME-K | --- | |
| 3 | XS5W-T421-EME-K | --- | |
| 5 | XS5W-T421-GME-K | --- | |
| 10 | XS5W-T421-JME-K | --- | |
| 15 | XS5W-T421-KME-K | --- |
Standard cable (Right-angle)
| Type | Cable length L (m) | Model |
|---|---|---|
M12 Plug Right angle-M12 Plug Right-angle
 |
0.3 | XS5W-T422-AM2-K |
| 0.5 | XS5W-T422-BM2-K | |
| 1 | XS5W-T422-CM2-K | |
| 2 | XS5W-T422-DM2-K | |
| 3 | XS5W-T422-EM2-K | |
| 5 | XS5W-T422-GM2-K | |
| 10 | XS5W-T422-JM2-K | |
| 15 | XS5W-T422-KM2-K | |
M12 Plug Right angle-RJ45
 |
0.3 | XS5W-T422-AMC-K |
| 0.5 | XS5W-T422-BMC-K | |
| 1 | XS5W-T422-CMC-K | |
| 2 | XS5W-T422-DMC-K | |
| 3 | XS5W-T422-EMC-K | |
| 5 | XS5W-T422-GMC-K | |
| 10 | XS5W-T422-JMC-K | |
| 15 | XS5W-T422-KMC-K |
Shield Strengthening model
| Type | Cable length L (m) | Model |
|---|---|---|
M12 Plug-M12 Plug
 |
0.5 | XS5W-T421-BM2-SS |
| 1 | XS5W-T421-CM2-SS | |
| 2 | XS5W-T421-DM2-SS | |
| 3 | XS5W-T421-EM2-SS | |
| 5 | XS5W-T421-GM2-SS | |
| 10 | XS5W-T421-JM2-SS | |
M12 Plug-RJ45
 |
0.5 | XS5W-T421-BMC-SS |
| 1 | XS5W-T421-CMC-SS | |
| 2 | XS5W-T421-DMC-SS | |
| 3 | XS5W-T421-EMC-SS | |
| 5 | XS5W-T421-GMC-SS | |
| 10 | XS5W-T421-JMC-SS |
XS5H-T For Communication, Plug on One Cable End
Model Number Structure

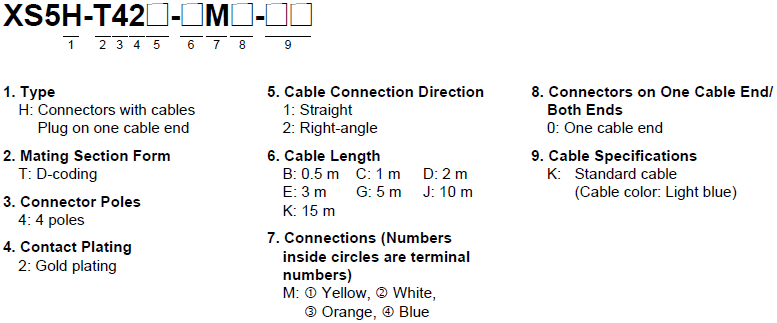

Model Number Legend
Use this model number legend to identify products from their model number.
Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information.
![XS5[]-T Lineup 11](/Images/3966_lu_613-324733.gif)
Ordering Information
| Type | Cable length L (m) | Model |
|---|---|---|
Straight
 |
0.5 | XS5H-T421-BM0-K |
| 1 | XS5H-T421-CM0-K | |
| 2 | XS5H-T421-DM0-K | |
| 3 | XS5H-T421-EM0-K | |
| 5 | XS5H-T421-GM0-K | |
| 10 | XS5H-T421-JM0-K | |
| 15 | XS5H-T421-KM0-K | |
Right-angle
 |
0.5 | XS5H-T422-BM0-K |
| 1 | XS5H-T422-CM0-K | |
| 2 | XS5H-T422-DM0-K | |
| 3 | XS5H-T422-EM0-K | |
| 5 | XS5H-T422-GM0-K | |
| 10 | XS5H-T422-JM0-K | |
| 15 | XS5H-T422-KM0-K | |
RJ45 Assembly Connector
 |
--- | XS6G-T421-1 |
XS5P-T Panel-mounting Sockets
Ordering Information
| Type | Lock | Wire length (m) | Model |
|---|---|---|---|
| With wire * | Rear Locking | 0.5 | XS5P-T426-5 |
| Rear Locking, with connector anti-rotation mechanism | XS5P-T428-5 | ||
| Front Locking | XS5P-T427-5 |
| Type | Model |
|---|---|
| M12 Panel-mounting PCB Straight Terminals * | XS5P-T426-1 |
* Install the rear lock type from the front of the panel and tighten the nut from the rear.
Install the front lock type from the rear of the panel and tighten the nut from the front.
